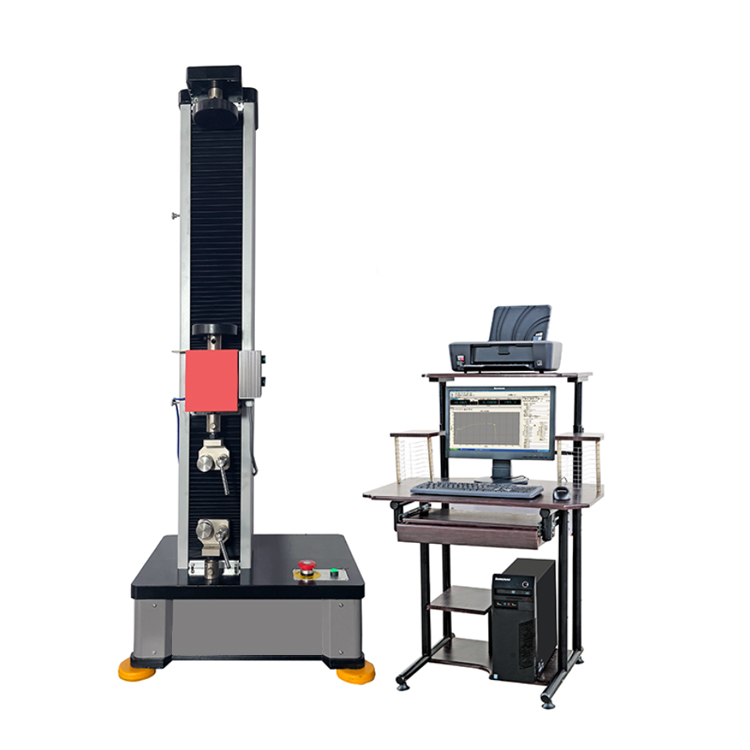

1/2/3/5kN Microcomputer controller nylon conveyor belt non woven fabric tensile testing machine

Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle Test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.

Standard:
ASTM, ISO, DIN, GB and other international standards.

Main Technical Parameters

Model

WDW-1, WDW-2, WDW-3, WDW-5

Max. load

1KN 2KN 3KN 5KN

Structure

Single column double spaces

Control method

computer control

Load accuracy

1 class

Load range

2%~100%F·S/0.4%-100% FS

Displacement Resolution

0.01mm

Test speed

0.05-500mm/min(can be customized)

Tensile space

600mm(can be customized)

Compression space

600mm(can be customized)

Power supply

AC220V±10%,50Hz(can be customized)

Grips

Wedge type, plate type and other grips as consumer’s demand

Dimension

425*400*1315mm

Weight

90kg
