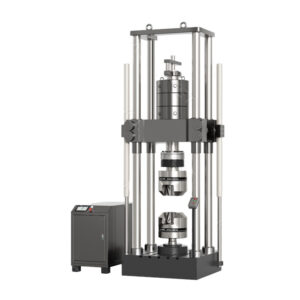

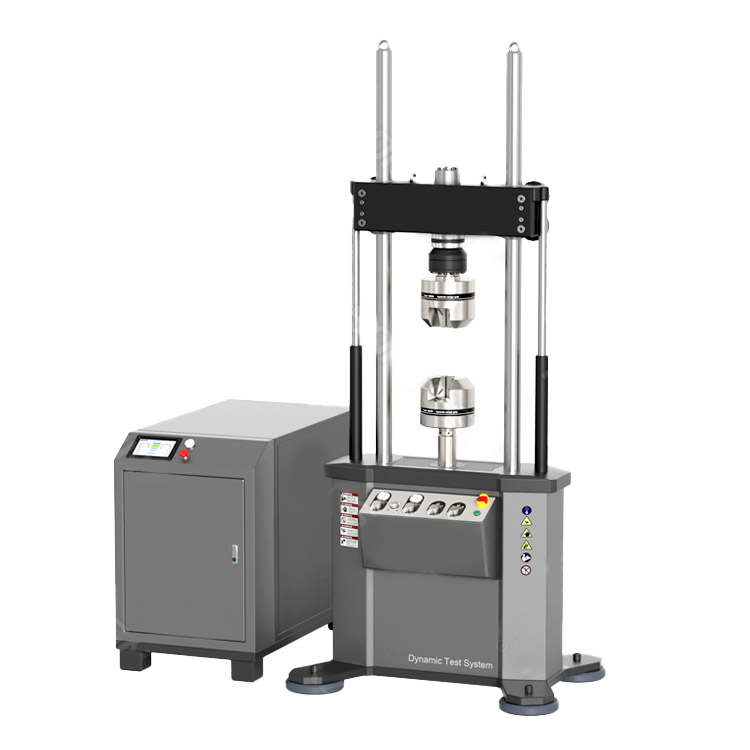

10 ton 20ton 50ton 100ton high frequency material dynamic static fatigue testing machine

Application
This series computer Control Electro-hydraulic Servo fatigue testing Machine is ainly used to detect a variety of metals, non-metallic materials and small movable member, the static mechanical properties Test. It can do tensile, compression, bending, low cycle and high cycle fatigue, crack growth, fracture mechanics test under sine, triangle, square wave, trapezoidal wave, random wave, combination waveform.

Specifications

Model

KASON-HDT254B, KASON-HDT504B, KASON-HDT105B, KASON-HDT255B, KASON-HDT505B

Maximum dynamic force (kN)

±50, ±100, ±250, ±500, ±1000, ±2000

Maximum static force (kN)

50, 100, 250, 500, 1000, 2000

Load range

2%-100%FS

Testing Machine accuracy

Static indication accuracy: ±0.5%
Dynamic loading accuracy: ±1%

Actuator dynamic stroke(mm)

150

Displacement measuring range (mm)

0~150(±75)

Displacement measurement resolution(mm)

0.001

Deformation indication relative error

±0.5%

Sine wave test Frequency (Hz)

Standard: 0.01~30;

Optional: 0.01~50;

0.01~100(Static pressure support cylinder)

Vertical test space(mm)

800, 800, 800, 1000, 1000

Working table height (mm)

825, 825, 825, 825, 825

Effective distance between columns(mm)

545, 545, 545, 635, 635

Column diameter(mm)

80, 76.2

Main frame stiffness

3×108

Machine frame sizes(mm)

1010X720X2900, 1148X795X3252

Machine frame weight(KG)

1200, 1200

Coaxiality of hydraulic fixture

5%

Power supply

AC 380V± 10%, 50Hz
