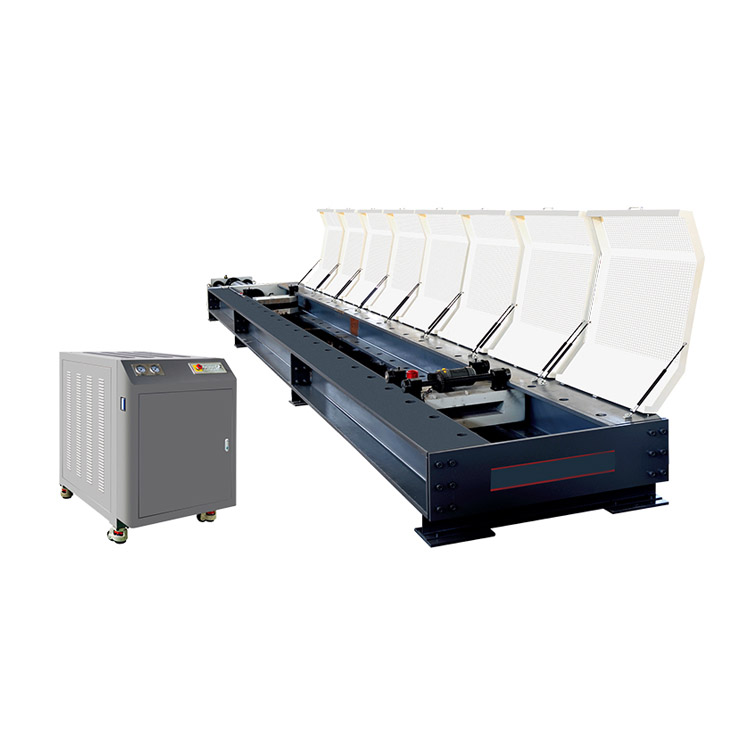

100 Ton Universal Horizontal Tensile Test Bench Machine Price 1000kn Horizontal Tensile Testing Machine

Application
It has widely application, for a variety of long, short sample Test, especially for large, long length sample. Common test types such as: wire rope tensile test, lifting belt tensile test, safety rope tensile test, power fittings destruction test, etc. The machine adopting computer control, hydraulic servo drive, hydraulic single-pole bidirectional cylinder loading, precision spoke load sensor signal measuring force value, high accuracy sensor measurement displacement.

Safety Device


1.1 Stroke protection: Machinery, computer double protection, prevent over preset
1.2 Force protection: system setting
Emergency stop device: handing emergencies

Specifications

Model

WAL-1000

Max. Load(kN)

1000

Load accuracy

Class 1

Load range

2%~100%F·S

Load resolution(kN)

1/300000

Resolution of displacement

0.01mm

Max tensile space

10000mm

Cylinder piston stroke

1500mm

Displacement measuring range

0~1000mm

Displacement accuracy

±1%

Range of stress loading

1kN/s~100kN/s

Testing speed (mm/min)

1~200

Piston speed

0.1-250mm/min

Power supply

380 V / 3 phases 60 Hz.
