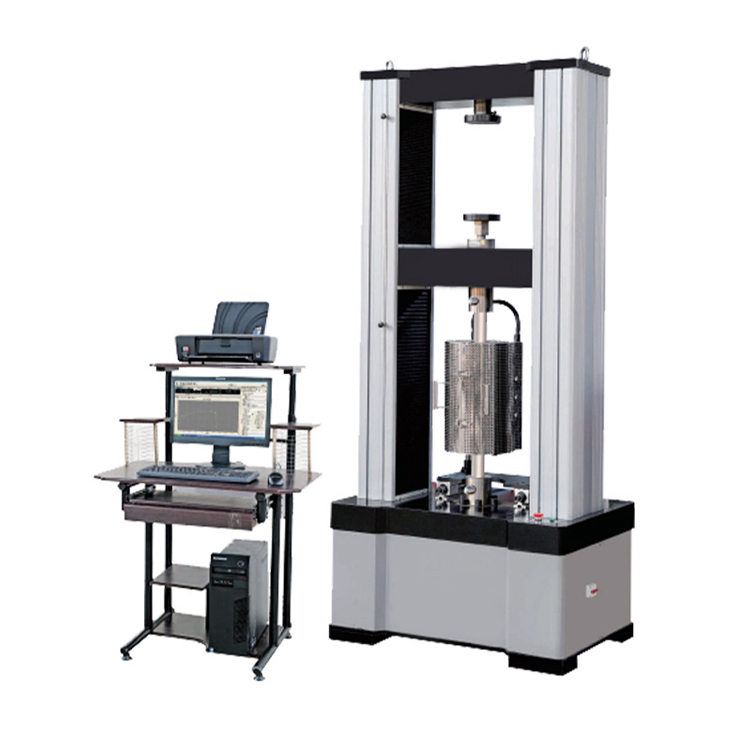

Load Capacity 100KN
Load accuracy Class 0.5 according to ISO 7500-1 – Meets ASTM E-4
Testing Load Accuracy ±0.5%
Testing Load Range 0.4%-100%FS
Load Resolution 1/500,000FS
Deformation measuring range 0.2%—100%FS
Deformation accuracy ≤±0.5%
Position resolution 0.04um
Deformation resolution 1/±500000FS of the max deformation
Position accuracy Within ±0.5% of the value
Crosshead speed range 0.001-500mm/min
Crosshead speed accuracy ±0.5% of set speed
Constant force, constant deformation, constant displacement control range 0.5%–100%FS
Constant force, constant deformation, constant displacement control accuracy When the set value is <10%FS, it is within ±1% of the set value;
Crosshead Travel 1000mm
Max. Tensile Testing Space 650mm
Max. compression testing Space 650mm
Test width 550mm
Compression Platen Ф100mm
Load Cell High-precision USA load cell
Motor Delta Ac servo speed control system
Position limit switch Upper and lower lights
Power Supply AC220V±10%, 50Hz/60Hz
Overall Dimensions (L*W*H) 950x660x2000mm
Weight 680kg
Operating temperature 800 to 1400 ° C
Long-term operating temperature 1400 ℃
Heating element material Silicon-molybdenum rod
Heater diameter φ12 (approx.)
Temperature measuring element Type B thermocouple 800 to 1400 ° C
Number of heater segments 1
Number of temperature measuring points 1
Temperature sensitivity 0.1 ℃
Temperature measurement accuracy 0.002
Heating rate 1℃ to 20℃/min
Temperature accuracy Test temperature (℃) Temperature fluctuation
500～1200 ±1
1200～1400
Inside diameter of the furnace Diameter × length: φ220×260mm
Overall dimension Diameter × length: φ540×550mm
Grips Tensile grips for flat specimen Length:100mm,width:6mm,Thickness:4-5mm
Bending grips(span:60mm)
Temperature measurement and control system HMI intelligent control
Operating voltage 380V
