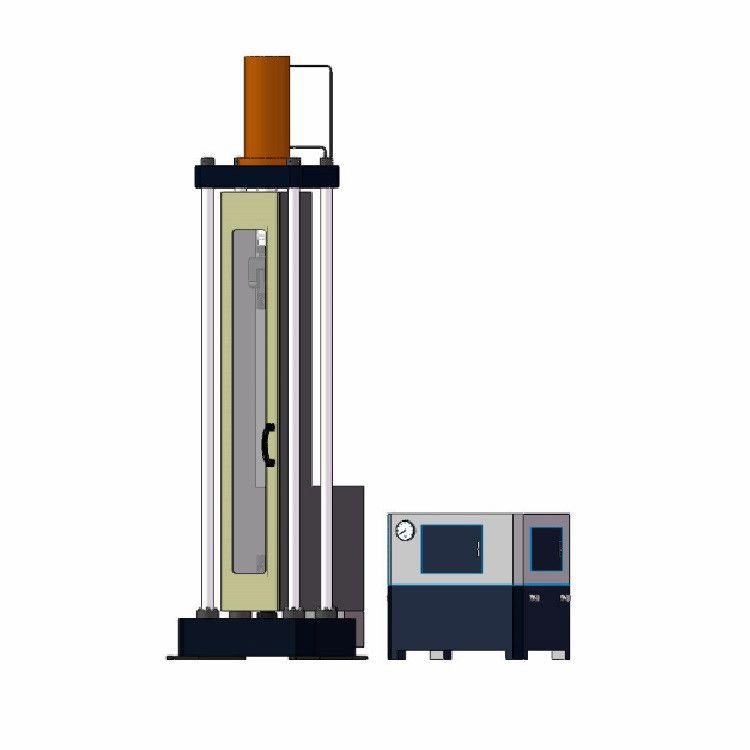

100T Insulator Thermal-mechanical testing machine

Application
1.1 Tensile Test of power fittings, insulators, bolts, etc.
2. Standards
2.1 GB/T16826-2008《Electro hydraulic servo Universal Testing Machine》
2.2 GB/T2611—2007《 General technical requirements Testing Machine 》
2.3 JJG139—1999 《Tensile , compression and Universal testing machine》
2.4 JJG157-2008 《Testing requirements for Tensile , compression and universal material testing machines》

Category: Dynamic Fatigue Testing System

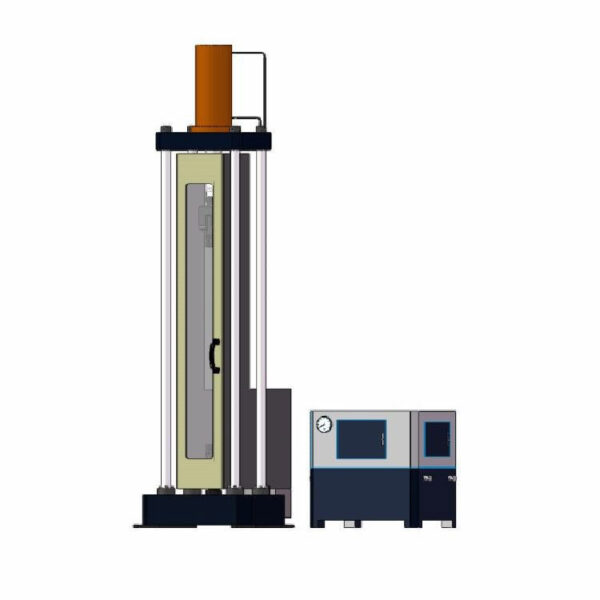

100T Insulator Thermal-mechanical testing machine

Specifications

Model	HST-100
Max. Load capacity(kN)	1000
Range of test force measurement	10～1000
Accuracy of test force	±0.5%
Resolution of displacement measurement	0.005
Displacement measurement accuracy	±0.5%
Deformation resolution	0.001
Maximum displacement of displacement	600
Max. Tensile space(mm)	2400
system pressure(MPa)	25
Deformation measurement accuracy	±0.5％
Effective distance between columns	900×630
Main engine size	1598×1248×5447
Host weight	9000
Hydraulic source weight (Kg)	800
