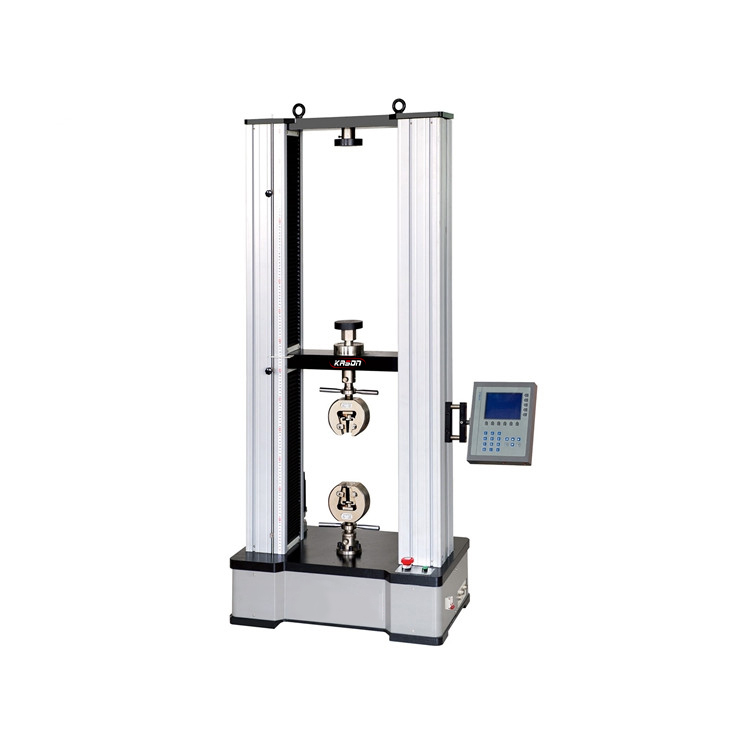

10KN/20KN/30KN/50KN Digital Display Electronic Universal Testing Machine

Application:
It is applicablefor wide range of material for tension, compression, bending, shearing and low cycle Test.Suitablefor metal, rubber, plastic, spring, textile, and components testing.It is widely used in the corresponding industries, research and development, test institutes and training centers etc.

Standard:
ASTM, ISO, DIN, GB and other international standards.

Main Technical Parameters

Features

Model ETM104S ETM204S ETM304S ETM504S
Max. Load(kN) 10 20 30 50
Load accuracy Class 1
Force Accuracy 2% to 100% Load Capacity;±1% Measuring Value
Force Resolution 1/30,0000
Position Resolution 0.01mm
Position Accuracy ±1%
Test speed(mm/min) 0.01-500
Tensile space(mm) 650
Compression space(mm) 600
Test width(mm) 400
Power supply AC220V, 50/60Hz
