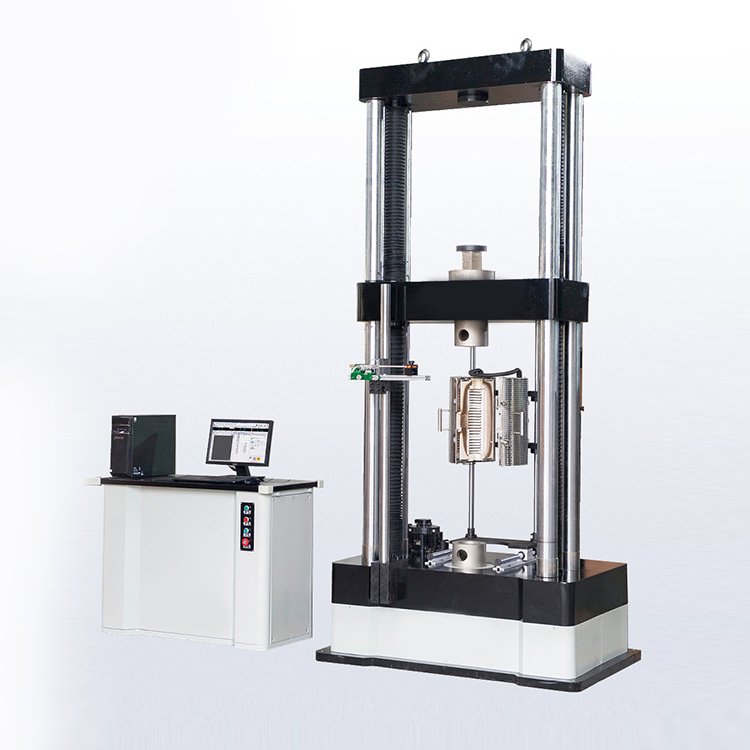

1100℃ Computer control High Temperature testing machine

Application
This series Testing Machines is mainly suitable for rubber, plastic profile, plastic pipe, sheet, sheet, film, wire and cable, waterproof coil, wire and other materials in high temperature or low temperature environment, tensile, compression, bending, peeling, tearing, shear and other mechanical properties of the Test; It is very convenient for users to carry out research and development, quality control work, and is an ideal Testing instrument for industrial and mining enterprises, commodity inspection arbitration, scientific research units, colleges and universities, engineering quality departments.

Category: Electronic Universal Testing Machine

1100℃ Computer control High Temperature testing machine

Specifications

Features

Load Cell
Capacity kN 20
Calibration standard – 0.5 according to ISO 7500-1 – Meets ASTM E-4
Accuracy grade % 0.5 of reading
Testing load accuracy %
Deformation accuracy %
Displacement accuracy %
Position resolution μm 0.025
Force range FS 0.4%-100%
Force resolution FS Capacity/500, 000(fully auto scaling of single measurement range)
Force accuracy % 0.5 of reading
Controller
Sampling frequency Hz Up to 1000
Closed loop control frequency Hz Up to 1000
Software English
Load resolution kN Capacity/500, 000(fully auto scaling of single measurement range)
Speed
Testing Speed mm/min 0.001-1000
Speed accuracy % ±0.5 of set speed
Main frame
Frame type – Dual test space
Test width mm 450
Crosshead Travel mm 1100
Max. Tensile Testing Space mm 770
Max. compression testing Space mm 1000
Power supply V/Hz 220V-50/60
Overall Dimensions (L*W*H) mm 840 x 570 x 1850
Net Weight kG 420
