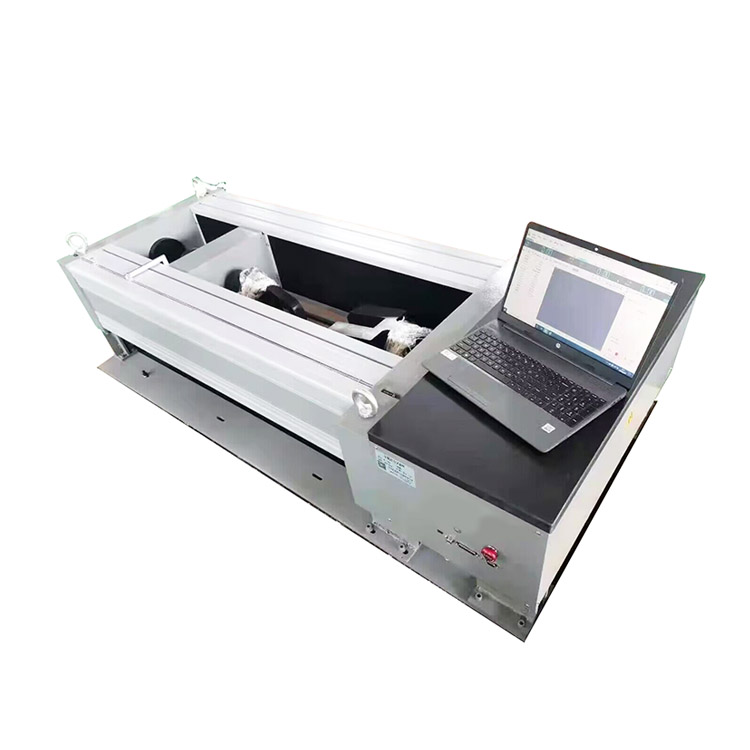

20 Ton Horizontal Tensile Testing Machine Chain Horizontal Tensile Tester

Application
This series materials Testing Machine product group was primarily developed for standardized Tests on ma- terials and components. Used in conjunction with the intuitive HKtest software. Typical test applications for wide range of tension, compression, bending, shearing and low cycle test.  include metal, rubber, plastic, spring, high strength steel (HSS), aerospace and automotive structures, screws, nuts, etc.

Category:
Request Quote
20 Ton Horizontal Tensile Testing Machine Chain Horizontal Tensile Tester

Features


This machine consists of the host, drive system and computer measurement and control system of three parts. This machine is the automatic computer acquisition experiment data and the automatic control process. Frame use the H frame structure, test force by the ball screw, load sensor, the encoder measuring displacement, computer screen displays real-time test power and test curve and automatic processing of test data according to the preset test method, sample clamping way is bolt method.

Specifications

Model

EWAL-10/20, EWAL-50, EWAL-100, EWAL-200, EWAL-300

Control Way

Close-loop servo and motor control

Max. Load force(kN)

10/20, 50, 100, 200, 300

Accuracy

≤0.5％ ; 0.5 class

Deformation accuracy

<±0.5% of reading

Displacement Resolution

0.01 mm

Test Force Measurement Range

2%-100% FS

Effective Tensile Space

Customized upon request

Net space between columns

Customized upon request

Loading Speed (mm/min)

0.05～500, 0.05～200

Structure

Center ball screw driven

Voltage

220V/380VAC±10%；50Hz/60Hz
