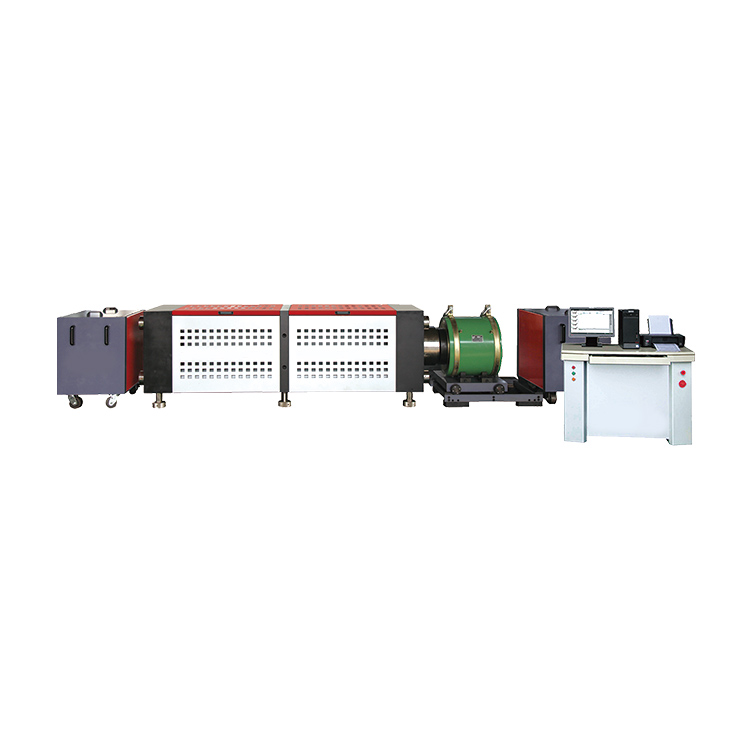

5000~12000KN electro-hydraulic servo horizontalanchor chain pre-tensioning special testing machine

Introduction
The electro-hydraulic servo horizontal anchor chain pre-tensioning special Testing Machine is a special tensile Test equipment specially developed for the characteristics of the anchor chain. The technology refers to a large amount of advanced technical experience at home and abroad, and integrates the particularity of the anchor chain production enterprise., A lot of considerations have been made in the aspects of automation, practicability, ease of operation, and production environment, which greatly improves the efficiency of Testing and production.

Category:
Request Quote
5000~12000KN electro-hydraulic servo horizontalanchor chain pre-tensioning special testing machine

Technical index


1. Maximum test force: 5000~12000KN
2. Double-cylinder horizontal structure: single-cylinder pulling force 5000KN
3. Oil cylinder stroke: 1000mm, (with built-in magnetostrictive sensor AMT-RH)
4. Stretching space: 5000mm
5. The stretching fixture adopts the hydraulic flat push type, the jaws are designed according to the chain angle, and are made of alloy steel
6. Control method: computer and PLC automatic control
7. Automatic chain mechanism
8. Automatic chain lifting device, follow-up extension of the punching mechanism
9. After the initial sample installation, the man-machine operation is separated
10. Equipped with video surveillance, can be networked
11. Hydraulics, electrical appliances, computers, various protection functions
12. Mechanical protection and computer control emergency stop with one button.
