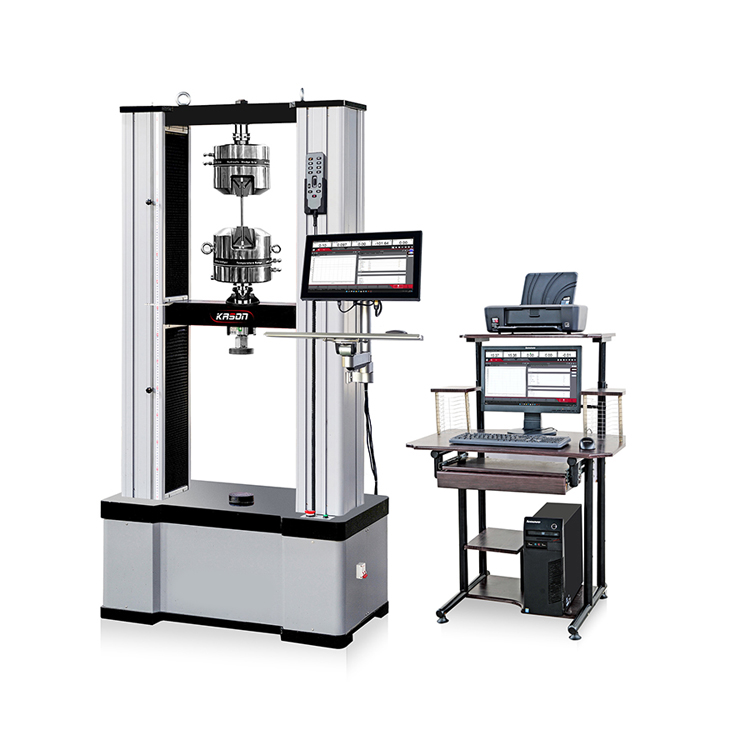

50kN 100kN 5T 10T Computer Control Electronic Universal Testing Machine with Touch screen

Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle Test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.

Standards:
ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002,GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc

Category: Electronic Universal Testing Machine

50kN 100kN 5T 10T Computer Control Electronic Universal Testing Machine with Touch screen

Specification

Features

Model ETM304 ETM504 ETM105
Max. Load(kN) 30 50 100
Load accuracy Class 0.5
Load range 0.2%～100%F·S
Load resolution 1/500000
Resolution of deformation 0.04um
Accuracy of displacement Within±0.5%of indicating load
Resolution of displacement 0.01mm
Test speed(mm/min) 0.05-1000 stepless arbitrary setting
Speed accuracy within ±1% / ±0.5% of set speed
E-Tensile space(mm) 770 770 650
E-Compression space(mm) 1000 1000 1000
D-Test width(mm) 450 450 550
F-Beam travel distance(mm) 1100
Power supply AC220V±10%，50Hz/60Hz (can be customized)
