Application

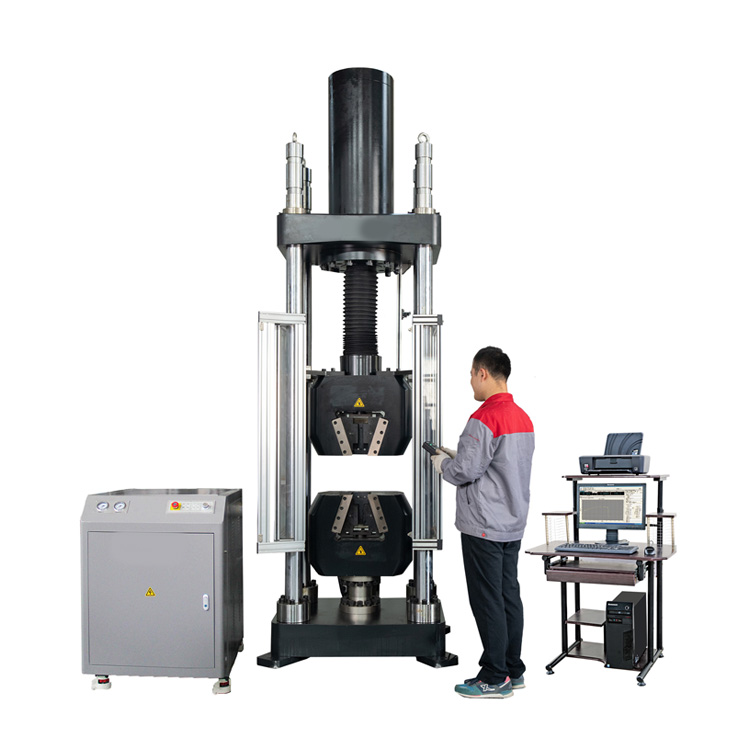

WAW-F Series Universal Testing Machines is designed with single workspace. It can do tension, compression, bending and shearing Tests. Force measurement is through Load Cell. With long travel actuator stroke, it is suitable to test standard specimens, long length specimens, and specimens with large elongation.
| Features | MODEL WAW-300F WAW-600F WAW-1000F Max. Load capacity(kN) 300 600 1000 Structure Four column Accuracy of Testing load(%) ±0.5 Accuracy of deformation(%) ±0.5 Test Range 1%-100% Deformation measurement range 1%-100% Posion rising speed（mm/min） 0-250 0-250 0-150 Piston descending spee（mm/min） 0-250 0-250 0-180 Test Force Loading Rate Range 0.02%-2%FS/s Max. Tensile space(mm) 400 580 700-1000 Max. Compression space(mm) 300 460 520 Actuator stroke(mm) 370 580 650 Max. Loading speed(mm/min) 100 100 75 Distance between columns(mm) 500 490×330 660×400 Clamping method Hydraulic Automatic Clamp With Wedge Grip Round insert(mm) Ф10-32 Ф10-40 Ф13-Ф26；Ф26-Ф40 Flat insert(mm) 2-25 2-30 2-40；40-60 Compression Platens(mm) 240*240 240*240 240*240 Dimensions of load frame(mm) 880x630x2980 880x630x2980 980x720x3530 Weight(kg) 1500 3000 5000 |
|---|
