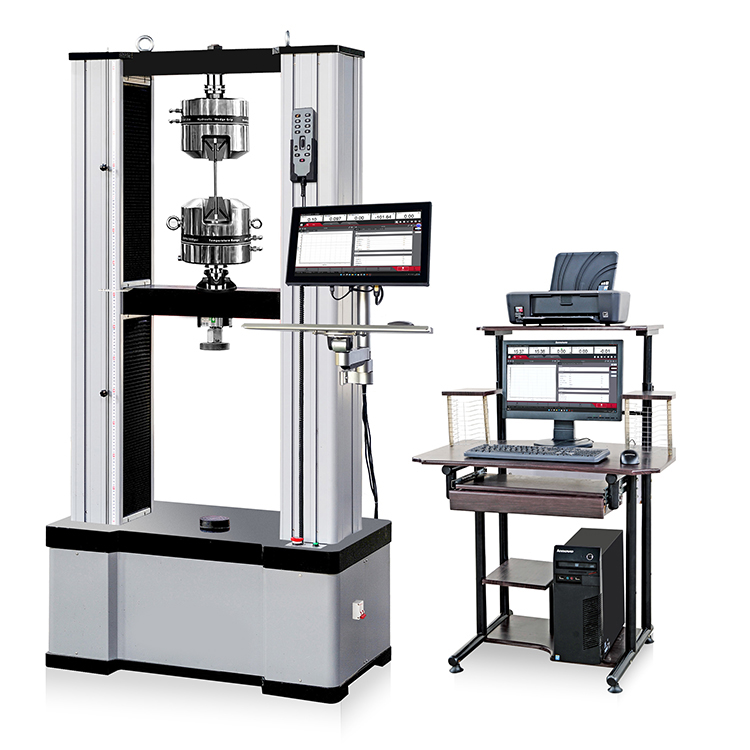

Electronic Computerized Double Column Laboratory Mechanical Material Electronic Universal Testing Machine With Touch Screen and TV

Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle Test. Suitable for metal, rubber, plastic, spring, textile, and composite materials testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.

Standard:
ASTM, ISO, DIN, GB and other international standards.

Category:
Request Quote
Electronic Computerized Double Column Laboratory Mechanical Material Electronic Universal Testing Machine With Touch Screen and TV

Main Technical Parameters

Features

Model ETM504 ETM105
Max. Load(kN) 50 100
Load accuracy Class 0.5 Class 0.5
Load range 0.2%～100%F·S 0.2%～100%F·S
Load resolution 1/300000
Resolution of deformation 0.04um 0.04um
Accuracy of displacement Within±0.5%of indicating load
Resolution of displacement 0.01mm
Test speed(mm/min) 0.05-500 stepless arbitrary setting
Speed accuracy within ±1% / ±0.5% of set speed
E-Tensile space(mm) 770 650
E-Compression space(mm) 1000 1000
D-Test width(mm) 450 550
F-Beam travel distance(mm) 1100 1100
Power supply AC220V±10%，50Hz/60Hz (can be customized)
Video show https://youtu.be/_1A1EqZBN7c
