High low temperature chamber tensile strength utm universal tensile testing machine

Application
This series of Testing Machines is mainly suitable for stretching, compression, bending, peeling and tearing of materials such as rubber, plastic profiles, plastic pipes, plates, sheets, films, wires and cables, waterproof rolls, and wires in high-temperature or low-temperature environments, shearing and other mechanical properties of the Test; it is very convenient for users to carry out research and development and quality control work, and is an ideal Testing instrument for industrial and mining enterprises, commodity inspection and arbitration, scientific research units, colleges and universities, and engineering quality departments.

Category:
Request Quote

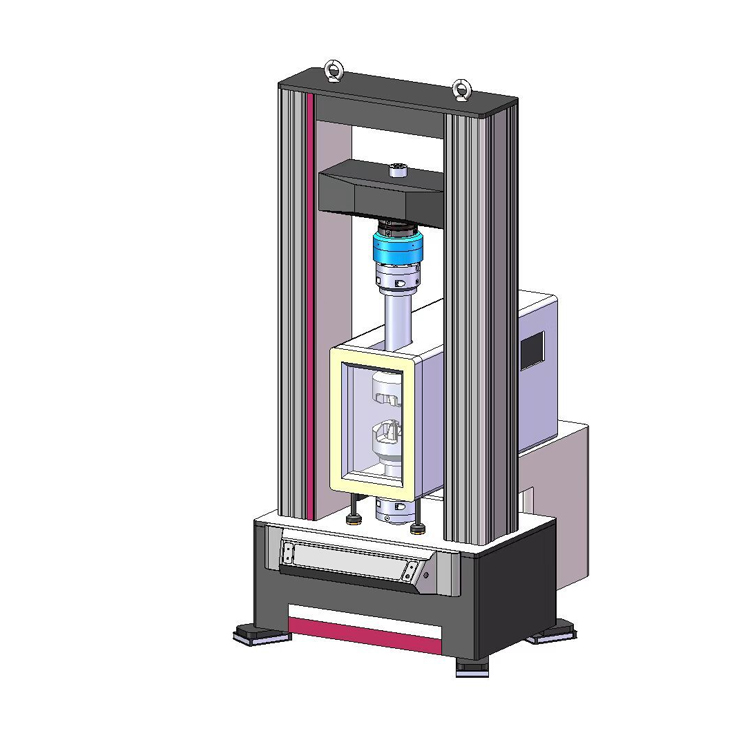

High low temperature chamber tensile strength utm universal tensile testing machine

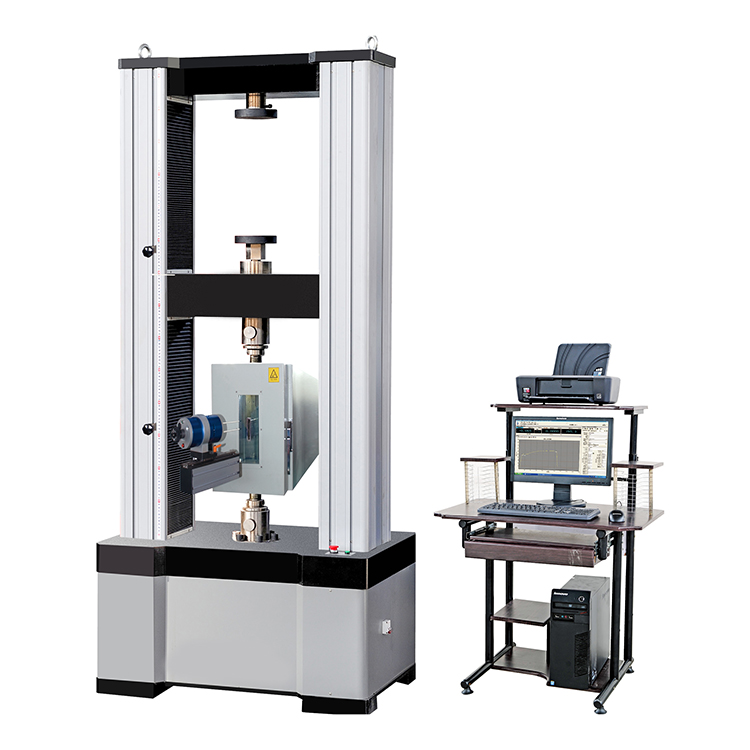

High low temperature chamber tensile strength utm universal tensile testing machine - Image 2

Standards


1. Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221. 2. Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846, EN 10002-4. 3. Safety: This machine shall conform to all relevant European CE Health and Safety Directives EN 50081-1, 580081-73/23/EEC, EN 61010-1 4. Metal: ASTM E8, ISO 6892, BS EN 10002-1, ASTM E21, IS0 783, EN ISO 7438, ISO 14589, ASTM F606 5. Plastics/ Composites: ASTM D638, EN ISO 6259, EN ISO 527-1, ISO 604, ASTM D695, ASTM D3846, EN ISO 844, EN ISO 13968, EN ISO 9969, etc. 6. Geo-textiles: ASTM D3950, ASTM D 6775-02, BS EN ISO 10319, JBT 8521(EN 1492-2).Rubber: ISO 37, ASTM D41

Specifications

Features

Model ETM104C ETM204C ETM304C ETM504C
Testing Machine Specifications
Load Capacity (kN) 10 20 30 50
Load accuracy Class 0.5
Testing Load Accuracy ±0.5%
Testing Load Range(FS) 0.2%-100%
Load Resolution 1/500,000FS
Deformation accuracy ≤±0.5% of 0.4%~100% of rated capacity
Position resolution 0.025μm(mm)
Position accuracy ±0.02mm or 0.5% of displacement (whichever is greater)
Crosshead speed range 0.001-1000 (mm/min)
Crosshead speed accuracy ±0.5% of set speed (zero or constant load)
Crosshead Travel(mm) 1100
Room temperature Tensile Space(mm) 770
Room temperature Compression Space(mm) 1000
Room temperature Test width (mm) 450
Load Cell High-precision USA load cell
Position limit switch Upper and lower lights
Power Supply AC220V±10%, 50Hz/60Hz
Overall Dimensions (L*W*H: mm) According to the size of High And Low Temperature Test Chamber
Weight(kG) According to the size of High and Low temperature test chamber
Note:Extra wide and/or extra height frames are available.Power supply system is completely customizable.Tensile space, test width, and speed is completely customizable.
High temperature environmental test chamber Specifications
Operating temperature range Room temperature -200℃( according to customer's order)
Cooling system compressor
Temperature uniformity < 200 ≤±2°C , ≥ 200 ≤±3,5°C
Temperature Fluctuation ≤±1°C
Heating rate 2-3℃/min
Power 220V
Material of inner box stainless steel
Outer box material stainless steel
Heating system Nickel-chromium alloy heating wire heater
Insulation Materials Ultra-fine glass wool or rigid foam
Air supply circulation system a: motor b: lengthened shaft c: centrifugal fan
Chamber Door Monolithic door
Controller Temperature Controller
Control panel Rotary switch
Inside dimensions(mm) 300*300*1000
