Application:

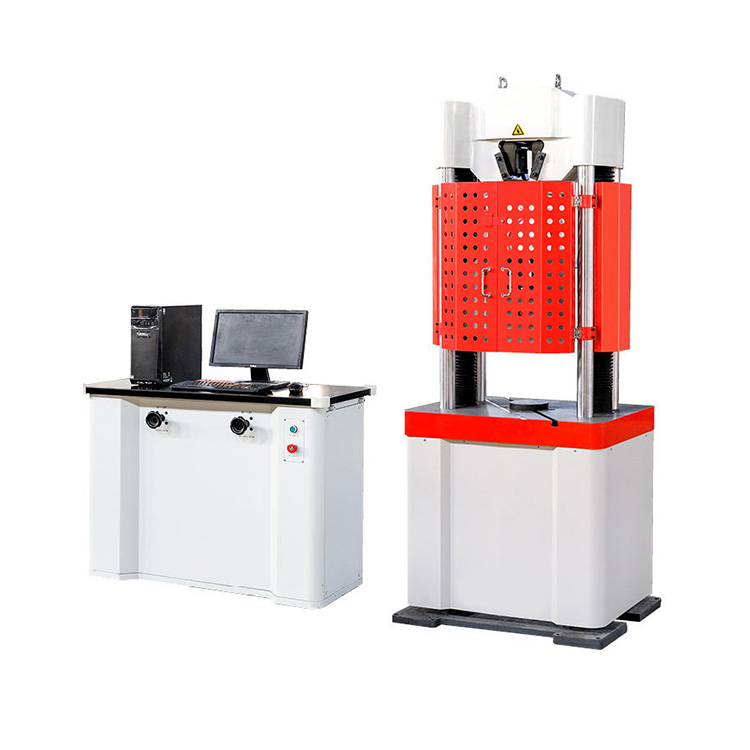

HUT series (Dual space) Servo-Hydraulic universal testing machine is ideal for high-capacity tension, compression, bend/flex, and shear Testing. These frames feature dual spaces so users can quickly change between tension and compression testing without having to remove heavy fixtures.
| Features | Model HUT105W HUT305W HUT605W HUT106W Frame Type 4-Column 2 screw construction Max. Load(kN) 100 300 600 1000 Load Accuracy Class 1/ Class 0.5(optional) Load Range 2%~100%FS Load Resolution 1/500000 Deformation Measurement Range 2%~100%FS Deformation Accuracy ≤± 1%/0.5 Displacement Resolution 0.001mm Displacement Error ≤±0.5% Testing speeds (mm/min) 0.1~125 Max. Piston Stroke(mm) 200 Max. Tension Test Space(mm) 600 600 600 600 Max. Compression Test Space(mm) 500 500 500 500 |
|---|
