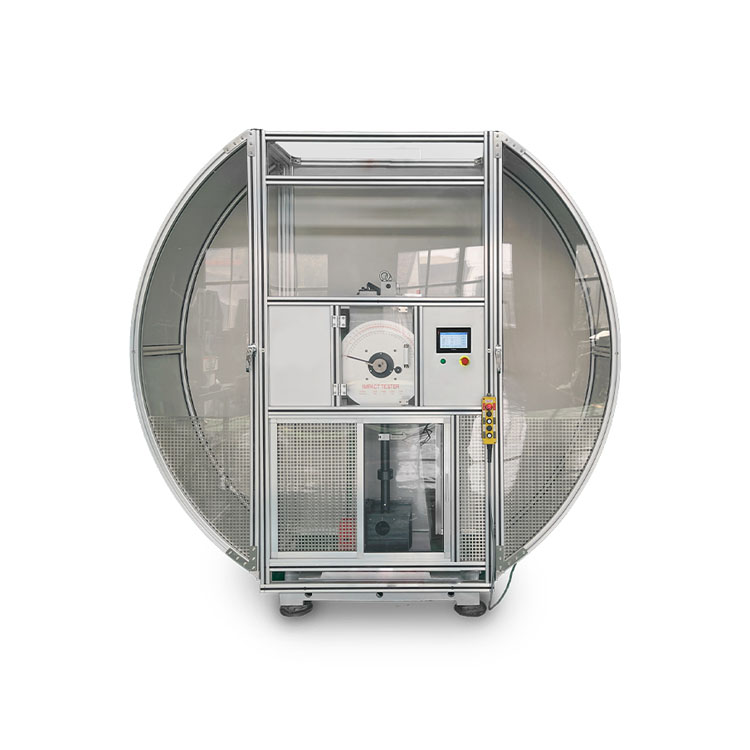

KASON PIT302T 300j 150j Pendulum Charpy Impact Testing Machine with Touch Screen

JBS series LCD touching screen display Pendulum Impact Tester is mainly used to determine the anti-impact capability of ferrous metal materials with high toughness, especially for steel and iron and their alloy, under dynamic load.

This series Tester is operated semi-automatically, the pendulum of the machine can be raised or released automatically. Be applicable for continuing Testing in different kinds of laboratories and other metallurgy industrial manufactories.

Category:
Request Quote
KASON PIT302T 300j 150j Pendulum Charpy Impact Testing Machine with Touch Screen

Main Technical Specifications

Model

KASON PIT302T, KASON PIT502T, KASON PIT802T

impact energy

150/300J, 250/500J, 500/800J

The distance between the pendulum shaft and impact point

750mm, 850mm, 800mm

Impact speed

5.2m/s, 5.4 m/s, 5.9m/s

Pre-rising angle of the pendulum

150°

Specimen bearer span

40+0.2mm

Round angle of the jaw

R1-1.5mm

Round angle of impact edge

R2-2.5mm,R8±0.05mm

Angle accuracy

0.1°

Standard specimen dimension

10mm×10(7.5/5)mm×55mm

Power supply

3phs, 380V, 50Hz Or 220V,60Hz
