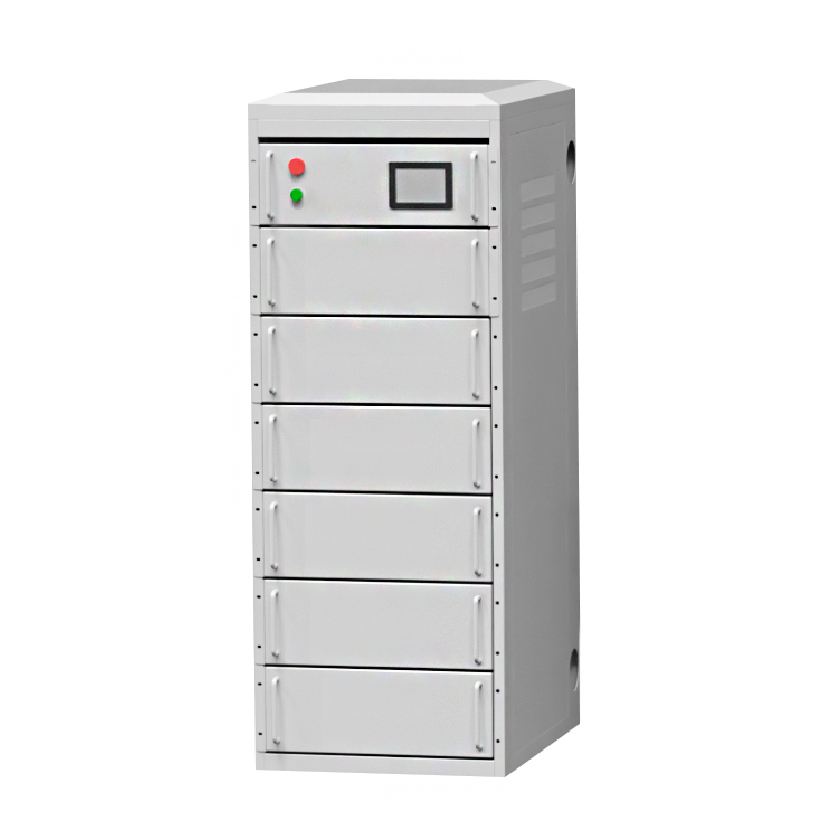

MM-400V57KWH18R
Rack Battery

Nominal Energy：57KWh
Cell Type：Supercapacitor battery
Nominal voltage：400V
Projected Cycle Life ( 25℃)：20000 times

Additional Information

Module

Rated Energy: 9.59 kWh

Nominal Voltage: 66.6 V

Nominal Capacity: 144 Ah

Minimum Voltage: 50.4 V

Maximum Voltage: 75.6 V

Charging Current Rate: 126 A

Discharging Current: 126 A

Battery Rack

Energy Per Rack: 57.54 kWh

Rack Rated Voltage: 399.6 V

Nominal Capacity: 144 Ah

Rack Minimum Voltage: 302.4 V

Rack Maximum Voltage: 453.6 V

Charging Current Rate: 126 A

Discharging Current: 126 A

PDU-Rack: 1 pcs

Modules Number: 6 pcs

Cells Self-discharge Rate: 2% per month

Cycle Life (25℃): 20,000 times

Cooling: Natural cooling

Case Material: Steel case

Storage Temperature: -30℃ ~ 40℃

Storage Humidity: 25% ~ 95% RH

Operating Temperature (Discharge): -20℃ ~ 60℃

Operating Temperature (Charge): -20℃ ~ 55℃

Cooling: Natural cooling

Case material: Steel case
