MM-716V107KWH31R

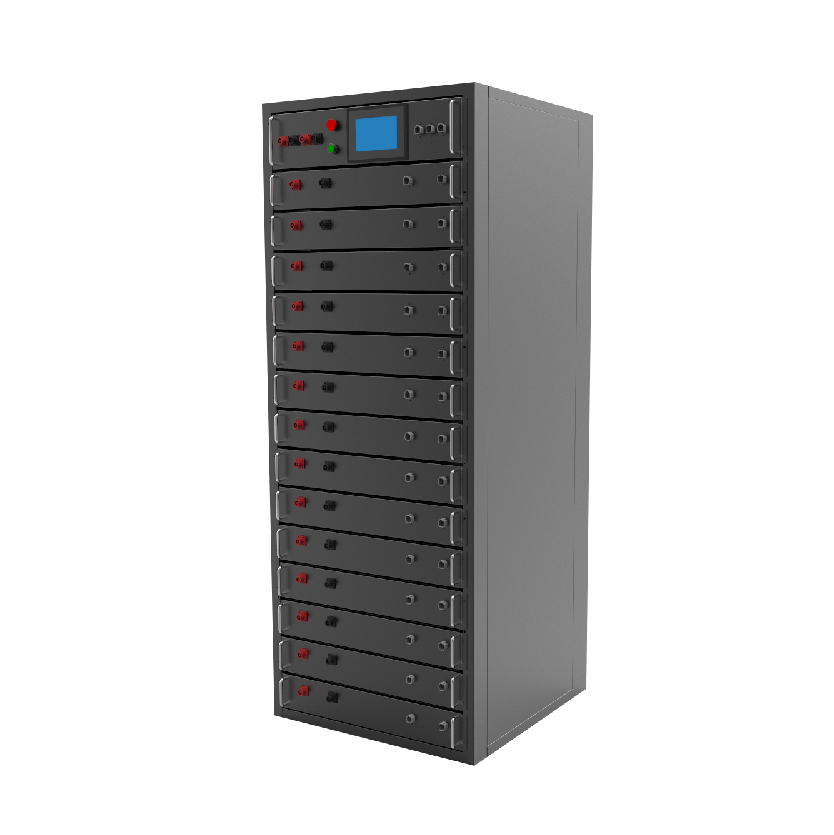

Battery Energy Storage System
- Nominal Energy：107KWh
- Cell Type：Supercapacitor battery
- Nominal voltage：716V
- Projected Cycle Life ( 25℃)：20000 times
Additional Information
| Module | Rated Energy: 10.752 KWh Nominal Voltage: 51.2 V Nominal Capacity: 210 Ah Minimum Voltage: 44.8 V Maximum Voltage: 57.6 V Charging Current Rate: 210 A Discharging Current: 210 A |
|---|---|
| Battery Rack | Energy Per Rack: 107.52 KWh Rack Rated Voltage: 716.8 V Nominal Capacity: 150 Ah Rack Minimum Voltage: 672 V Rack Maximum Voltage: 806.4 V Charging Current Rate: 210 A Discharging Current: 210 A Modules Number: 10 String Cells Self-discharge Rate: 2% per month Projected Cycle Life (25℃): 20,000 times Cooling: Natural cooling Case Material: Steel case Storage Temperature: -20℃ ~ 40℃ Storage Humidity: 25% ~ 95% RH Operating Temperature (Discharge): -20℃ ~ 60℃ Operating Temperature (Charge): 0℃ ~ 55℃ |
