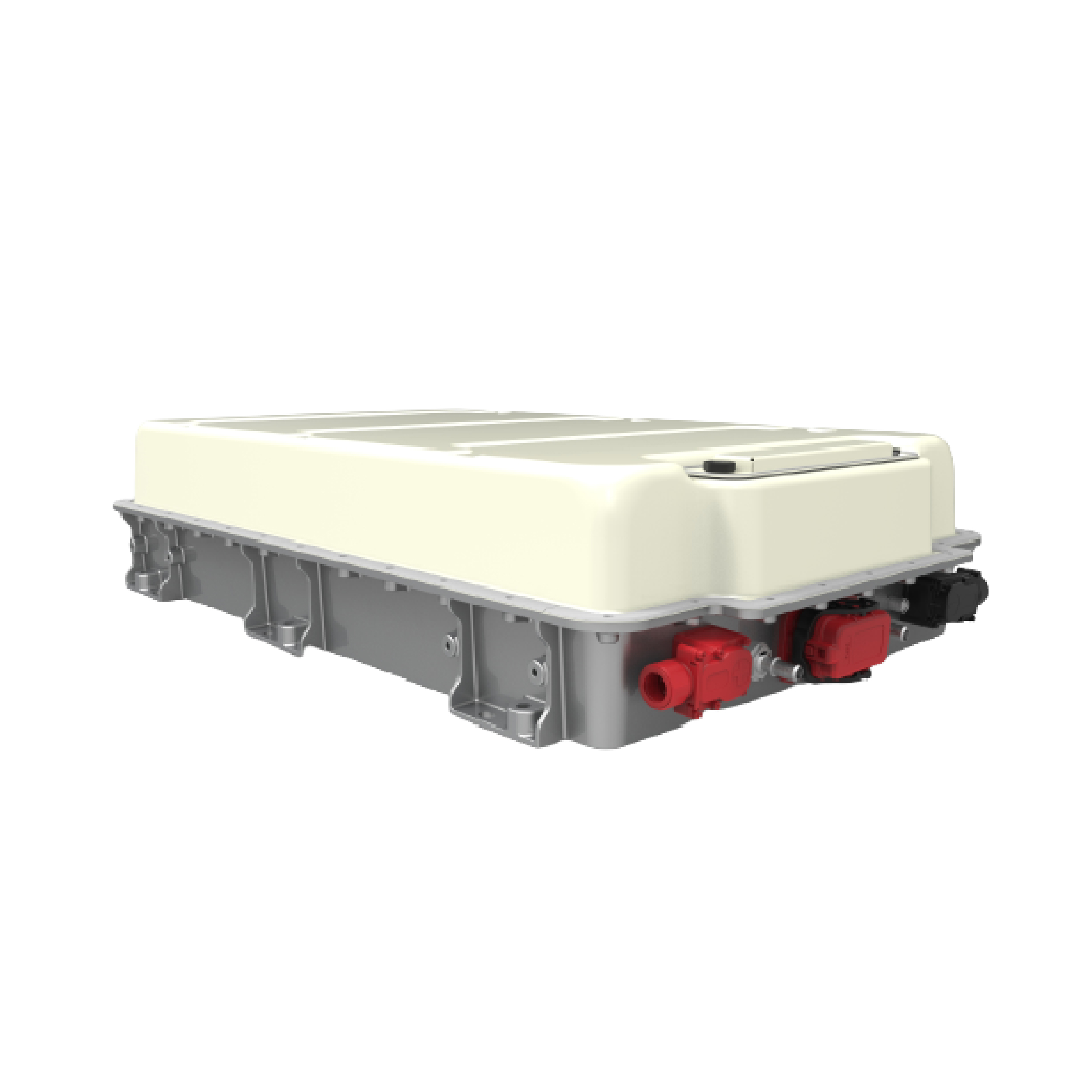

MM-800V690KWH18B
Ship Battery
Nominal Energy：690KWh
Cell Type：Supercapacitor battery
Nominal voltage：800V
Weight：4.9t
Projected Cycle Life ( 25℃)：20000 times
Standard module dimension

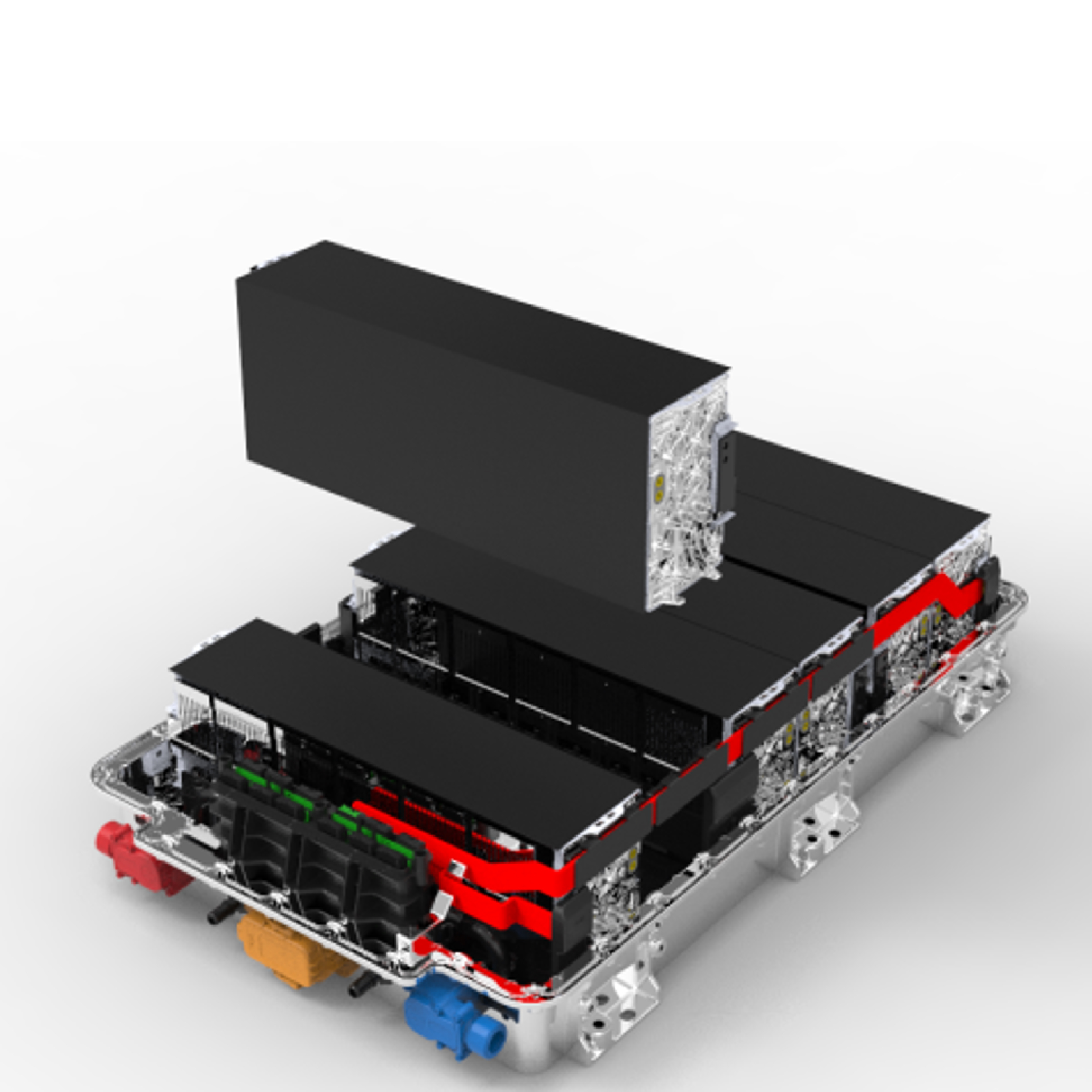

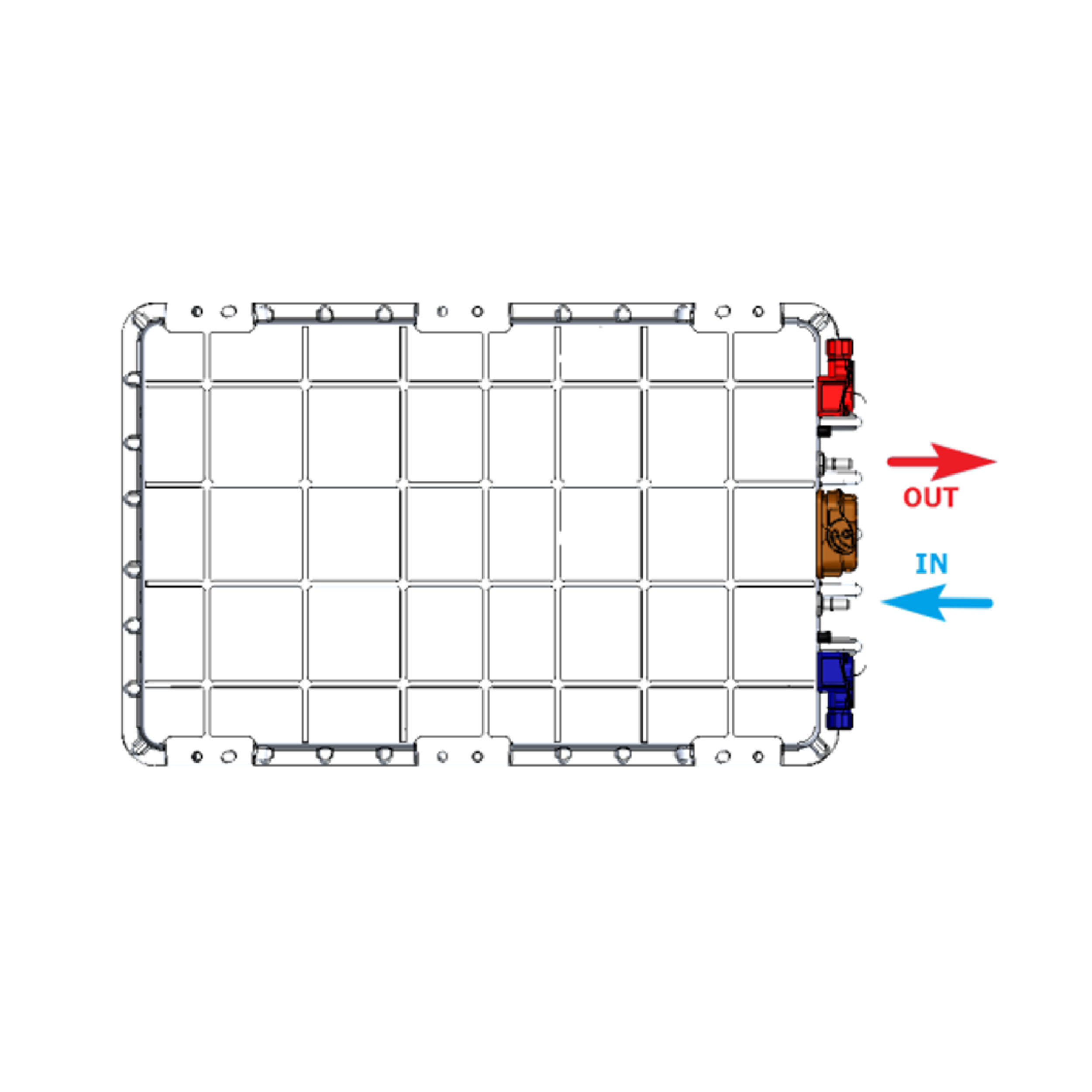

Patented laser-welding core Modules design6 modules are containedEach module contains maximum 72 cells.Local cell module controller included and serviceableMSD with fuse is equipped Liquid cooling design
SOC Calculation & Faults diagnosis
SOC Calculation:Real time dynamic calibrationVehicle operation condition was consideredMulti-method combinationHigh accuracy measurement of the cell voltage /temperature/pack currentAmount of data from experiment
Faults Diagnosis:Insulation & water leakageCell voltage out of rangeHigh/low temperatureCommunication faultsContactor weldPower connectionTemperature sensor faults
Additional Information
| Cell Data Sheet | Item: Nominal Capacity Item: Nominal Voltage: Item: Volume Energy Density Item: Upper Voltage Item: Min Voltage Item: Max. Cont. Charge Current Item: Max. Peak Charge Current Item: Max. Peak Charge Current Item: Internal Resistance Item: Weight Item: Temperature Range |
|---|---|
| Standard Module Data Sheet | Item: Nominal Capacity Item: Nominal Voltage Item: Voltage Range Item: Nominal Energy Item: Weight Item: Constant Charging Current (A) Item: Constant Charging Current (A) Item: Ingress Protection Item: Working Temp Range |
