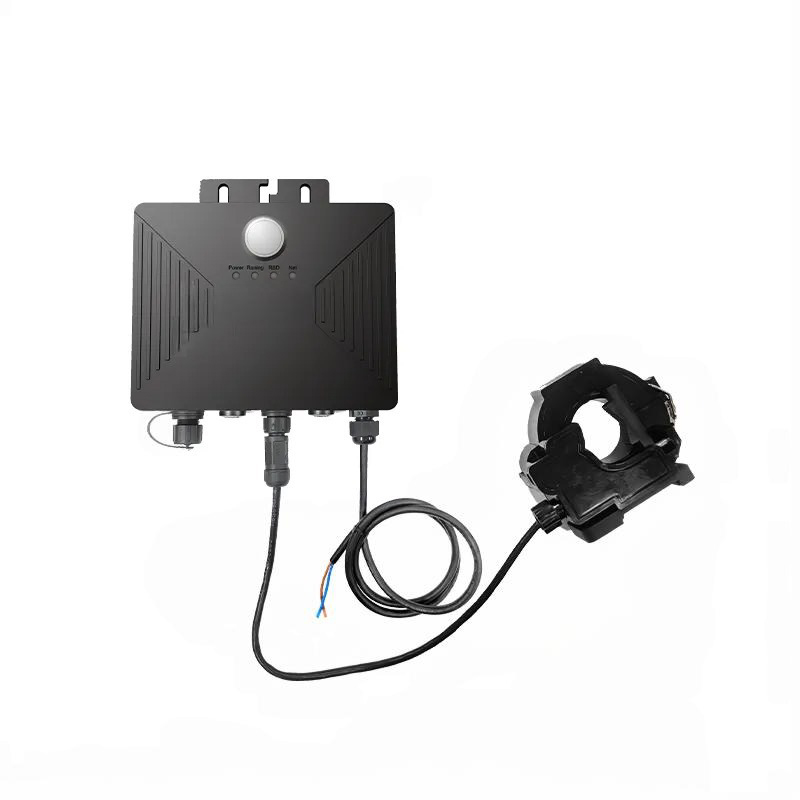

MM-GTC
Solar Power Optimizer
Real-time data collection & analysis for system performance monitoring
Remote access & management for settings adjustments & troubleshooting
Data-driven performance optimization
Additional Information
| AC Input Parameters | AC Input Voltage Range: 90 ~ 264V AC Input Frequency: 50/60Hz Maximum AC Input Power: 5W Maximum AC Input Current: 0.1A @ 90Vac |
|---|---|
| PV Input Parameters | Terminals: MC4 (Compatible) Maximum System Voltage: 1500V Number of Input Strings: 5 Maximum Number of iOPT: 100 Maximum Number of RSDi-2: 50 Communication Method |
| Communication with optimizer | Communication with upper machine: 2.4GHz Wi-Fi/RS485 |
| Rapid Shutdown | Shutdown: 1. Press the button once until the RSD indicator lights up |
| Standards | EMC: IEC61000-6-1; IEC61000-6-2; IEC61000-6-3 |
| Installation Specification | Dimension (W × D × H): 140 × 33.5 × 175mm Weight: 0.88kg AC Input Cable Length: 1m Protection Level: IP67 Working Temperature Range: -40 ~ +70℃ Form of Installation: Wall hanging / holding, screw locking Certification: CE Packaging: 8pcs/CTN, 6 CTN/layer, total 8 layers, 384pcs/pallet |
