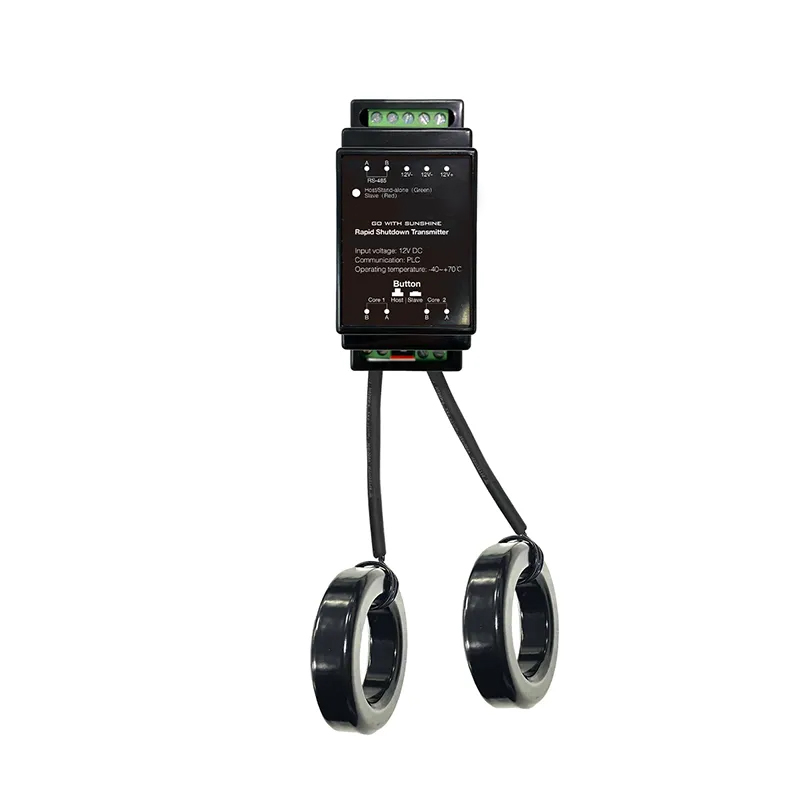

MM-SD-12VDC
Rapid Shutdown
Meets the requirements of NEC 2020&2023（690.12） standards
AC Pull Gates,Rapid shutdown of PV module output
Matching two magnetic rings
Host and slave can synchronize signals
MM-SD-12VDC
Additional Information
| Input voltage | 12VDC |
|---|---|
| Input current | 0.8A |
| Max.Mppt string voltage | 1500VDC |
| Max. number of series connections | 30 modules |
| Operating temperature | -40~70℃ |
| Safety regulation | NEC 2017&2020 (690.12); UL1741;CSA C22.2 No.330-17 |
| Magnetic ring inner diameter ID | 35.6mm |
| Number of strings inserted per ring* | 5 |
| Max. number of strings to be inserted* | 10 |
| String route length | ≤300m |
