Pendulum Impact Test Model Pendulum Impact Testing machine

Application

Pendulum Charpy Impact Testing Machine is used to determine the impact toughness of metal materialsunder dynamic load according to ISO148, ASTM E23 and EN 10045. It is suitable for laboratory, metallurgyindustry, machinery production, steel plant and other fields.

Semi-automatic type:it features as pendulum to be raised or released automatically, dial gaugeto show the impact energy. It is easy to operate with high efficiency.

Category: Impact Testing Machine Series

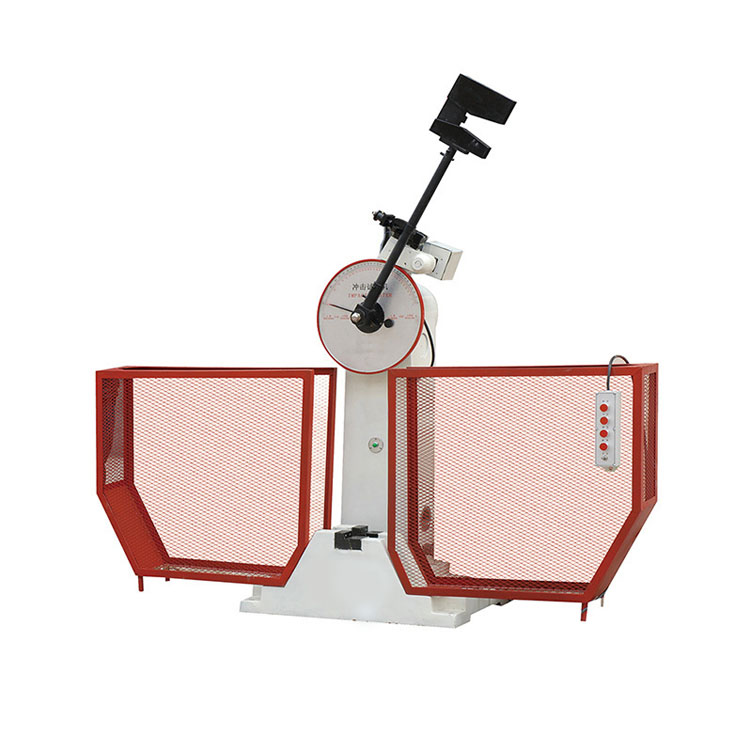

Pendulum Impact Test Model Pendulum Impact Testing machine

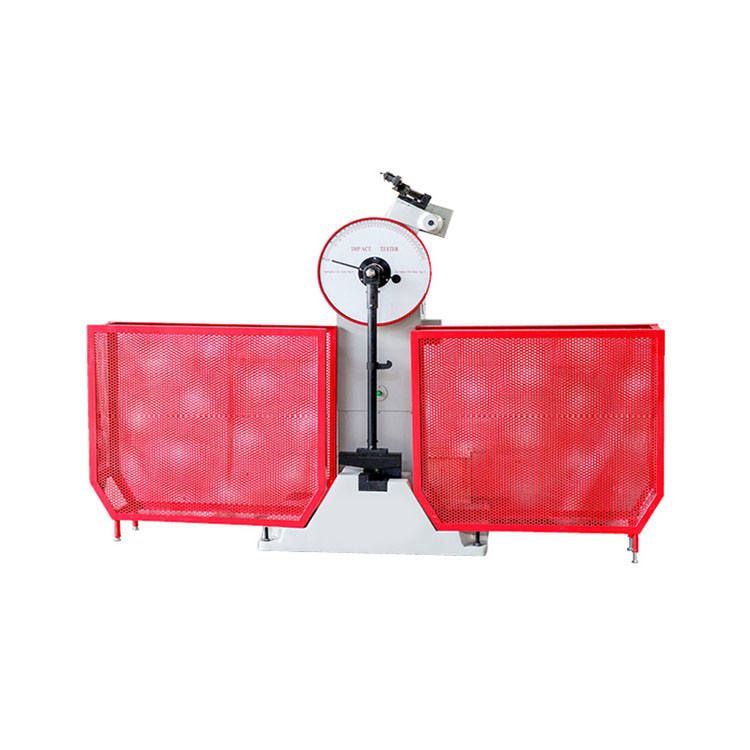

Pendulum Impact Test Model Pendulum Impact Testing machine - Image 2

Pendulum Impact Test Model Pendulum Impact Testing machine - Image 3

Specifications

Model	PIT320T, PIT502T
Type	B
Impact energy (J)	150,300, 250,500
Impact velocity (m/s)	5.2, 5.4 – 5.24
Raised angle	150º
Standard span (mm)	40+0.2mm
Distance between pendulum rotating center and specimen center	750mm
Round angle of jaws (mm)	R1-1.5
Round angle of striking edge (mm)	R2-2.5 or R8±0.05
Size of specimen (mm)	10 x 10(7.5/5) x 55
Power supply	3phs, 380V/220V±10%, VAC50Hz or specified
Dimensions (mm)	2124 x 600 x 1340, 2144 x 736 x 1390
Gross weight(KG)	550, 750
