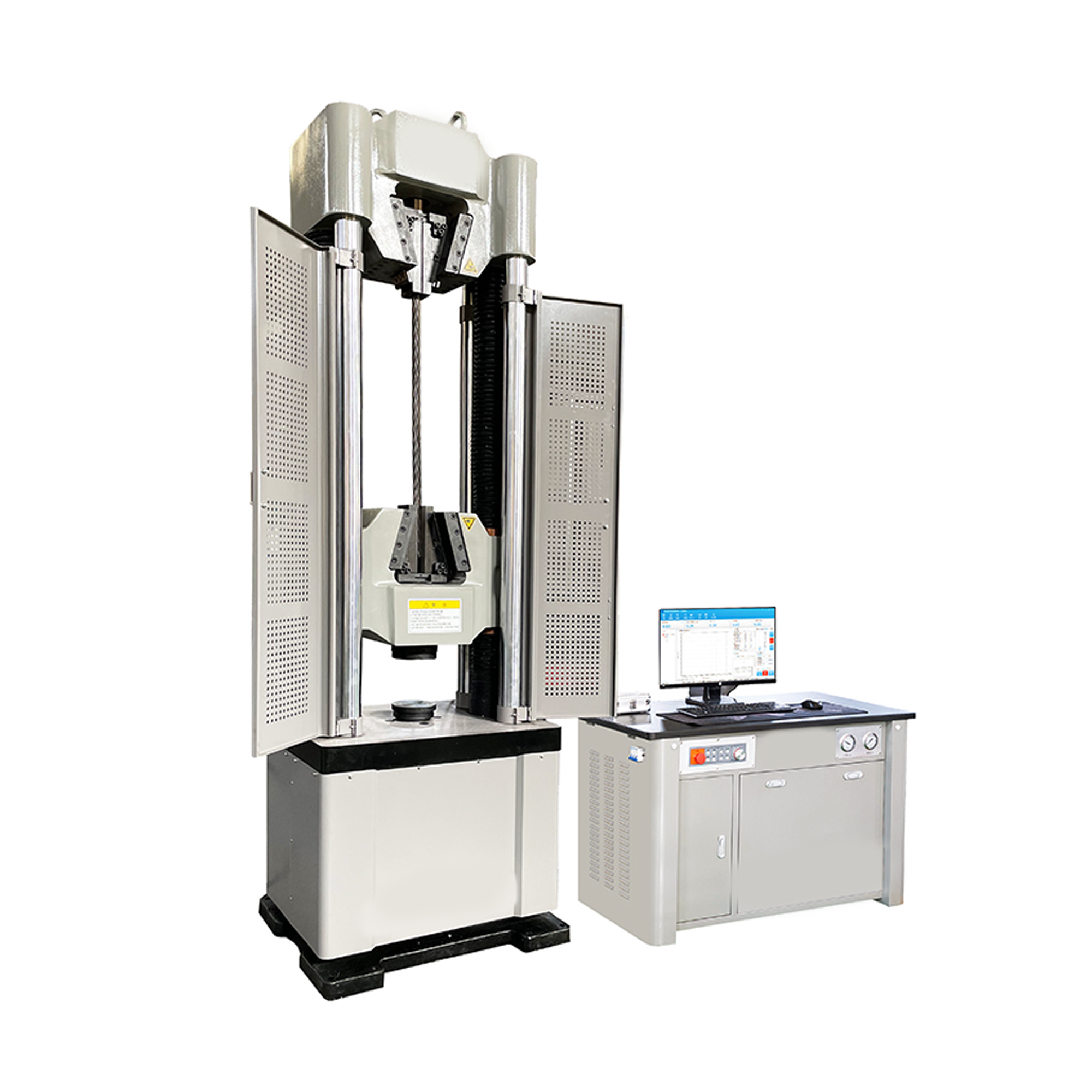

Servo Hydraulic Universal Tensile Testing Machine in 100kn/300kn/500kn/600kn/1000kn/2000kn/5000kn

Application
For static and cuasi-static Test (low frequency fatigue) for high loads in many types of tests. Specially indicated to switch test mode, thanks to its dual space design.The choice of test mode tensile / compressive or tensile bending can be performed without switching devices, increasing the productivity.

Standards
Manufactured according to Standards EN 10002-2; ASTM E4, ISO 7500-1; DIN 51221 and BS1610 guide.

Category:
Request Quote
Servo Hydraulic Universal Tensile Testing Machine in 100kn/300kn/500kn/600kn/1000kn/2000kn/5000kn

Specifications

Features

Model WAW-100D WAW-300D WAW-600D WAW-1000D WAW-2000D
Number of Screw drivers 4
Max. Load (kN) 100 300 600 1000 2000
Load Accuracy <± 1%/ <± 0.5%
Load Range 2%?100%FS/ 0.4%~100%FS
Load Resolution 1/300000
Deformation Measurement Range 2%~100%FS
Max. Piston Stroke(mm) 200 200 250 250 250
Max. Tension Test Space(mm) 780 780 800 980/1350(PC strand) 1000
Max. Compression Test Space(mm) 550 550 550 700/1000 750
Column Effective Spacing(mm) 485 485 500 560 650
Clamping Method Hydraulic Automatic Clamp
