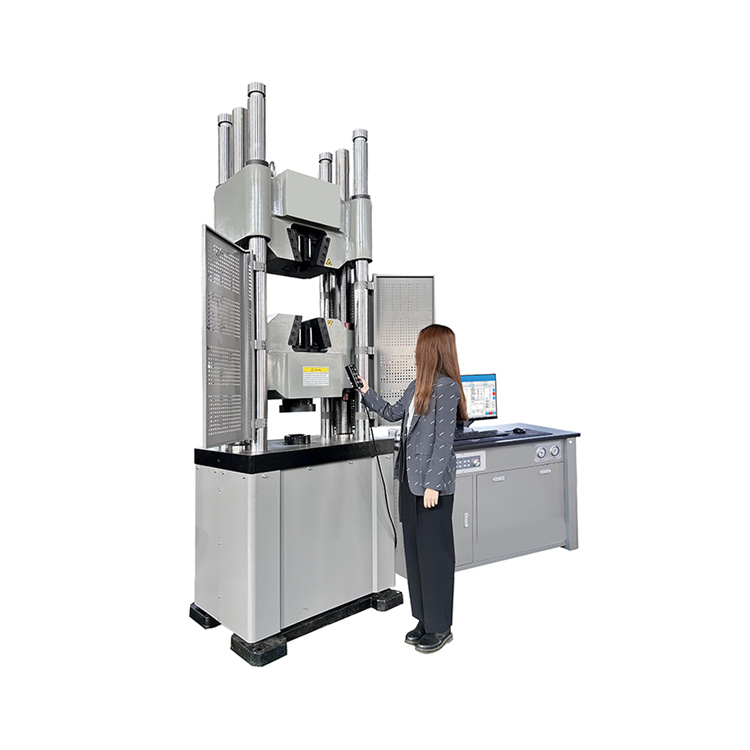

Application
For static and cuasi-static Test (low frequency fatigue) for high loads in many types of tests. Specially indicated to switch test mode, thanks to its dual space design. The choice of test mode tensile / compressive or tensile bending can be performed without switching devices, increasing the productivity.
| Model | WEW-100D WEW-300D WEW-600D WEW-1000D WEW-2000D |
|---|---|
| Max. Load (kN) | 100 300 600 1000 2000 |
| Load Accuracy | <± 1%/ <± 0.5% |
| Load Range | 2%?100%FS/ 0.4%~100%FS |
| Load Resolution | 1/300000 |
| Deformation Measurement Range | 2%~100%FS |
| Deformation Accuracy | <± 1% |
| Displacement Resolution | 0.01mm |
| Displacement Error | <±0.5% |
| Max. Piston Stroke(mm) | 200 200 250 250 250 |
| Max. Tension Test Space(mm) | 780 780 800 980/1350(PC strand) 1000 |
| Max. Compression Test Space(mm) 550 | 550 550 700/1000 750 |
| Column Effective Spacing(mm) | 485 485 500 560 650 |
| Clamping Method | Hydraulic Automatic Clamp |
