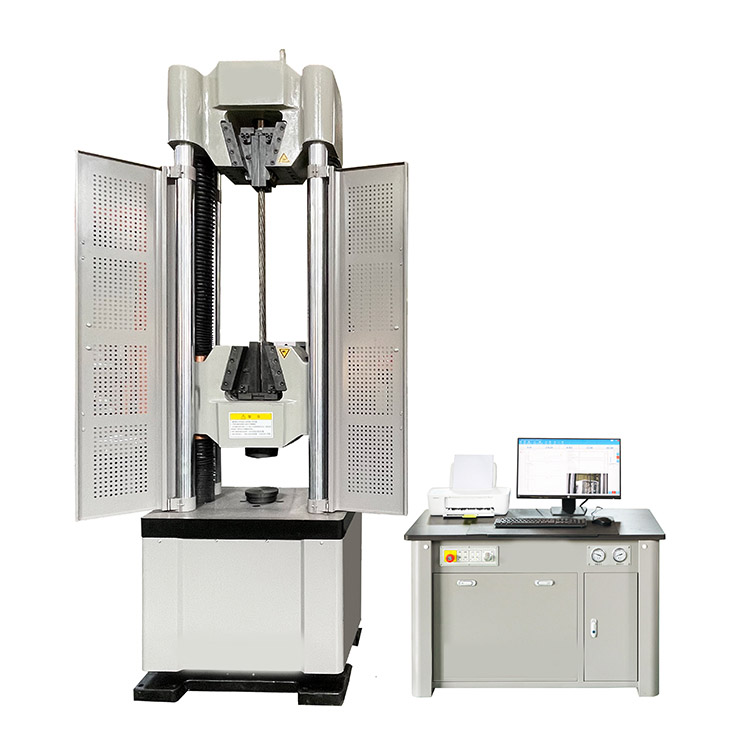

WAW-300 300kn computer servo professional compression hydraulic universal testing machines

Application
The machine adopts hydraulic loading, Computer Display, easy and convenient to operate.  It is mainly used to execute the tension, compression, bending, flexural etc. test for metal materials.  Attached with simple accessories and devices, it can be used to test wood, concrete,  cement, rubber, and so on. It is very suitable for making test to different metal or nonmetal  materials under high toughness and hardness against extreme big  loading force.

Category:
Request Quote
hydraulic universal testing machines

Standards


ISO6892, BS4449,ASTM C39,ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards.

Specifications

Model

HUT305S, HUT305E, HUT305W, HUT605S, HUT605E, HUT605W, HUT105S, HUT105E, HUT105W, HUT126S, HUT126E, HUT126W, HUT206S, HUT206E, HUT206W

Max. Load(kN)

300, 600, 1000, 1200, 2000

Load Accuracy

Class 1/ Class 0.5

Deformation Accuracy

≤± 1%

Displacement Resolution

0.001mm

Displacement Error

≤±0.5%

Testing speeds (mm/min)

0.1~123, 0.1~123, 0.1~70, 0.1~70, 0.1~70

Max. Piston Stroke(mm)

200, 200, 200/250, 250, 250

Tension Test Space(mm)

780, 900, 950/980, 930, 1250

Compression Space(mm)

550, 650, 700, 640, 850

Column Effective Spacing(mm)

485, 500, 560, 610, 800

Clamping Method

Manual clamps(S series) Hydraulic Automatic Clamp(E and W series)

Flat Specimen Clamping Width(mm)

80*80, 90*90, 100*100, 120*110, 150*120

Power Supply

3-phase, AC380V, 50Hz (Can Be Customized)
