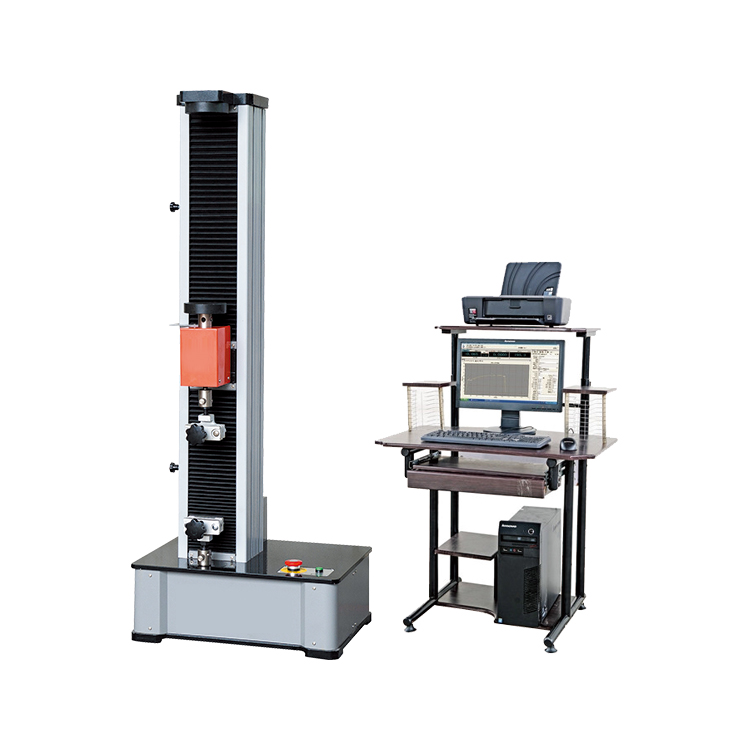

WDW-0.1/0.2/0.3/0.5/1/2/3/5 Computerized Single Column Electronic Universal Testing Machine

Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle Test. Suitable for metal, rubber, plastic, spring, textile, and components testing.
It is widely used in the corresponding industries, research and development, test institutes and training centers etc.

Standard:
ASTM, ISO, DIN, GB and other international standards.

Main Technical Parameters

Model

WDW-01/02/03/051/2/3/5

Max. Load

100N-5 KN

Control Method

1 Class

Load Range

2%~100% FS (0.02KN~1KN)

Displacement Resolution

0.01mm

Test Speed

0.05~500mm/min

Tensile Space

600mm

Compression Space

600mm
