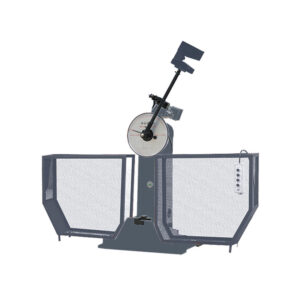

XJJD Series Digital Display Impact Testing Machine

Applications
This series Digital Display Impact Testing Machine is Single-chip microcomputer control,
electric hammer block release, the impact energy display by the LCD.
Each set of sample can do one to ten data, test data can be deleted arbitrarily.
Automatically calculate the strength and average strength. Automatic print data report.

Standard


JB/T8761,GB/T1043,ISO179 and so on.

Main Technical Parameters

Model

XJJD-50

Impact Energy(J)

7.5,15,25,50

Impact Speed

3.8m/s

Pendulum Angle

160°

Round Angle Of Impact Cutting Edge

R=2±0.5mm

The Distance Between Pendulum Center And Sample Center

380mm

Accuracy Of Energy

0.001 J

Energy Loss

0.5%

Dimension

550mm×350mm×850mm

Weight

160 kg
