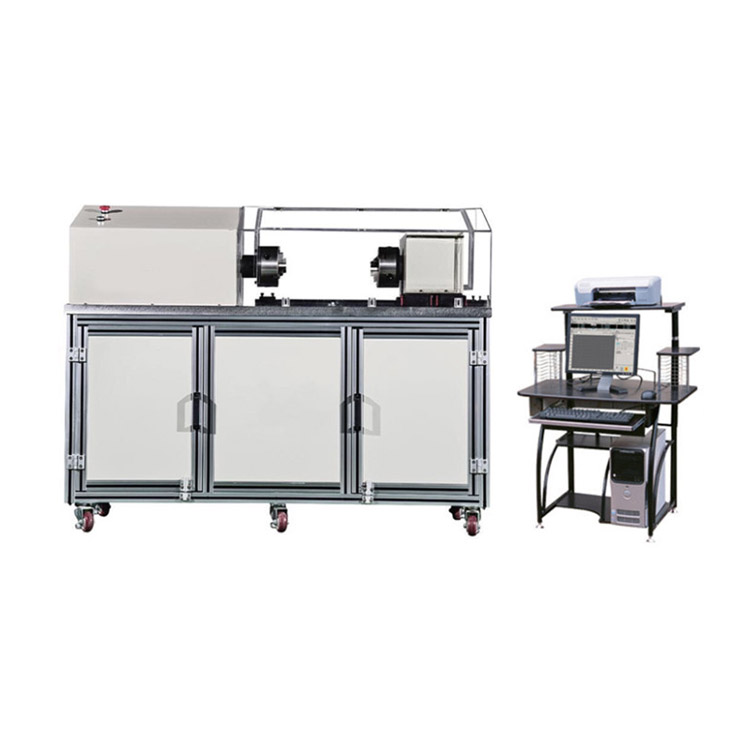

50N.m-2000N.m Universal Joint Torsion Fatigue Testing System

Application
1. Used in torsional fatigue Test and anti-fatigue characteristics of structure for drive shaft, universal joint or intermediate shaft.
2. Used in static torsion strength test for drive shaft, universal joint or intermediate shaft.
3. Used in quasi-static torsion strength test for drive shaft, universal joint or intermediate shaft.
4. Used in universal joint intermediate shaft test, constant speed drive shaft test, fixed joint test, moving joint test.
5. Used in bearing capacity test for drive shaft, universal joint or intermediate shaft.

Category:
Request Quote
50N.m-2000N.m Universal Joint Torsion Fatigue Testing System

Applications


6. Used in shift and angle test for universal joint.
7. Used in axial clearance test and peripheral clearance test for universal joint.
8. Used in swinging torque test, rotating torque test for universal joint.
9.  Used in life test for universal joint and drive shaft and universal joint durability test.

Standards


QC/T1020-2015 test method for automobile constant speed universal joint and its assembly;
QC/T647-2013 automotive steering knuckle assembly performance requirements and test methods;
QC/T649-2013 automotive steering mechanism performance requirements and test methods;
JB/T8925-2017 rolling bearing automobile universal joint cross shaft assembly technical conditions;
JB/T10189-rolling bearing constant speed universal joint and its assembly for automobile;
Agricultural universal joint drive shaft JB/ t11909-2014
GB/T15089- classification of motor vehicles and trailers

Specifications

Model

KASON-N50W, KASON-N100W, KASON-N200W, KASON-N500W, KASON-N1000W, KASON-N2000W

Max. Torque (N/m)

50, 100, 200, 500, 1000, 2000

Machine Level

1 Class

Torsion Angle Measurement Range

2%-100%FS

Control Method

Constant Torque And Constant Speed Rotation,
Constant Speed Twist Angle Of The Closed Loop Control Mode

Torque Display Resolution

1/20000

The Accuracy Of Torque Values

≤±1%

The Accuracy Of Torsion Angle Value

Better Than±0.5%

Torsion Angle Display Resolution

1/20000

The Accuracy Of Angle Values

≤±1%

Angle Display Resolution

0.01°

Torsional Angular Rate Control Range

0.05-800°/min

Max. Reading Of Torsion Angel

99999°

Max. Distance Between Two Collets

600mm

Supply Power

220V±10%, 50Hz
