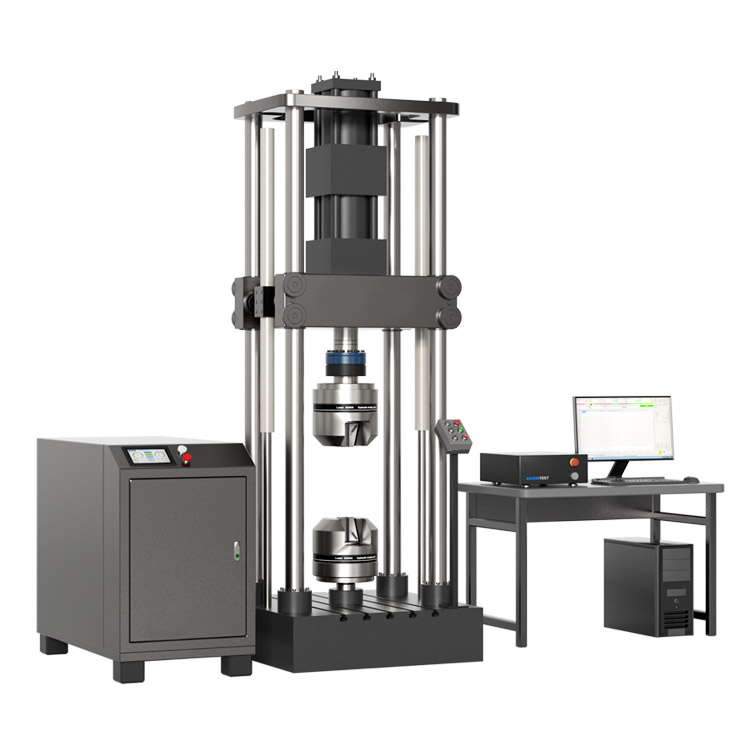

HDT-A servo hydraulic Dynamic Static Fatigue Testing Machine (4 column)500kn/1000kn/2000kn

Application
It is mainly used to Test the dynamic and static mechanical properties of various materials, parts, elastomers, shock absorbers and components. It can perform tensile, compression, bending, low and high cycle fatigue, crack propagation, and fracture mechanics tests under sine wave, triangle wave, square wave, trapezoidal wave, and combined waveforms. It can also be equipped with environmental Testing devices to complete environmental simulation tests at different temperatures.

Category:
Request Quote
HDT-A servo hydraulic Dynamic Static Fatigue Testing Machine (4 column)500kn/1000kn/2000kn

Features


The actuator is mounted and the T-type platform is mounted to form a closed frame structure.
The frame has large stiffness, no reverse clearance and good stability.
The actuator is designed by two-way acting cylinder.
Hydraulic fixtures can be installed on the T-shaped platform, as well as various parts and structural parts.

Specifications

Model

KASON-HDT504A, KASON-HDT105A, KASON-HDT255A, KASON-HDT505A, KASON-HDT106A, KASON-HDT20A

Maximum dynamic force (kN)

±50, ±100, ±250, ±500, ±1000, ±2000

Maximum static force (kN)

50, 100, 250, 500, 1000, 2000

Load range

2%-100%FS

Testing Machine accuracy

Static indication accuracy: ±0.5%
Dynamic loading accuracy: ±1%

Actuator dynamic stroke(mm)

150

Displacement measuring range (mm)

0～150(±75)

Displacement measurement resolution(mm)

0.001

Deformation indication relative error

±0.5%

Sine wave test Frequency (Hz)

Standard: 0.01～30;

Optional: 0.01～50;

0.01～100(Static pressure support cylinder)

Test space (mm)

1500

Test width（mm）

720

Main frame stiffness

3×108

Coaxiality of hydraulic fixture

5%

Power supply

AC 380V± 10%, 50Hz
