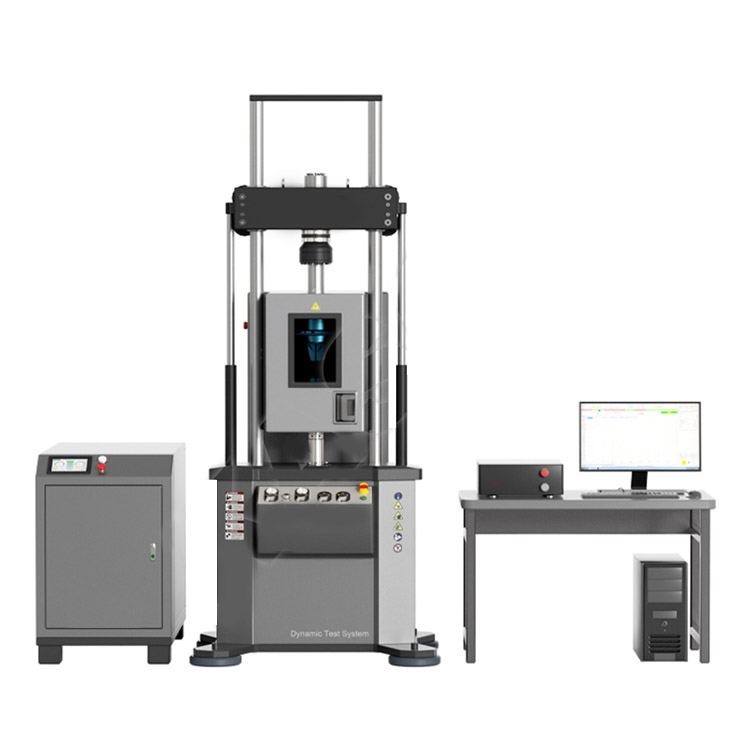

Hydraulic Servo Dynamic Fatigue Testing Machine with chamber High And Low Temperature Fatigue Testing Machine

Application
It is mainly used to detect the static and dynamic mechanical properties of metal and non metal materials. It can realize mechanical Tests such as tension, compression, tension-tension, compression-compression and tension-compression, as well as high-cycle fatigue, low cycle fatigue, crack growth, fracture toughness and other tests, and realize various waveform outputs such as sine wave, triangle wave, square wave, etc.

Specifications

MODEL

KASON-HDT254B, KASON-HDT504B, KASON-HDT105B, KASON-HDT255B, KASON-HDT505B

Maximum dynamic force (kN)

±2, ±5, ±10, ±20, ±50

Maximum static force (kN)

2, 5, 10, 20, 50

Load range

2%-100%FS

Testing machine accuracy

Static indication accuracy: ±0.5%
Dynamic loading accuracy: ±1%

Amplitude stroke(mm)

150

Displacement measuring range (mm)

0~150(±75)

Displacement measurement resolution(mm)

0.001

Displacement accuracy

±0.5%

Sine wave test Frequency (Hz)

Standard: 0.01~20;
Optional: 0.01~50;
0.01~100(Static pressure support cylinder)

Vertical test space(mm)

800, 800, 800, 1000, 1000

Working table height (mm)

825, 825, 825, 825, 825

Effective distance between columns(mm)

545, 545, 545, 635, 635

Column diameter(mm)

80, 76.2

Main frame stiffness

3×108

Machine frame sizes(mm)

1010X720X2900, 1148X795X3252

Machine frame weight(KG)

1200, 1200

Coaxiality of hydraulic fixture

5%

Power supply

AC 380V± 10%, 50Hz

Temperature range

-60℃~+300℃; -70℃~+300℃;-100℃~+300℃
