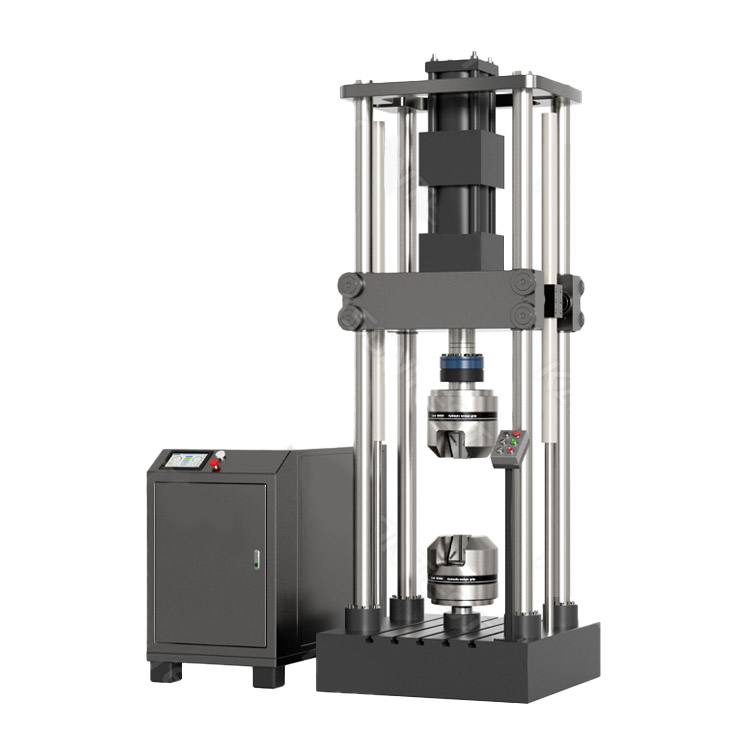

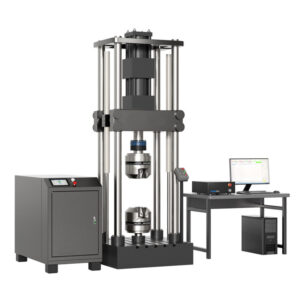

shock absorber dynamic fatigue testing machine with CE static hydraulic universal testing machine

Application
This series computer Control Electro-hydraulic Servo fatigue testing Machine is mainly used to detect a variety of metals,non-metallic materials and small movable member, the static mechanical properties Test. It can do tensile, compression, bending,low cycle and high cycle fatigue, crack growth, fracture mechanics test under sine, triangle, square wave, trapezoidal wave,random wave, combination waveform.

Standards


1 GB / T2611-2007 《Tester General technical requirements》
2 GB / T16826-2008 《Hydraulic servo Universal testing machine》
3 GB 3075 《Axial fatigue Testing metal》
4 JB / T9379-2002 《Tension and compression fatigue test machine technical conditions》
5 GB / T228-2010 《Metallic materials at room temperature tensile test method 》

Specifications

MODEL

KASON-P50, KASON-P100, KASON-P200, KASON-P250

Static Load Capacity(kN)

50, 100, 200, 250

Dynamic Load Capacity(kN)

±40, ±80, ±160, ±160

Load Accuracy

±1.0% of Reading

Range Of Frequency

0.1~15Hz / 20Hz / 50Hz

Stroke of Piston(mm)

±50

Distance Between Grips(mm)

50~600

Specification of constant voltage servo pump station

flow≥37L/min, 21Mpa, 380V three phase

Warranty

2 YEARS

Certificate

ISO/CE
