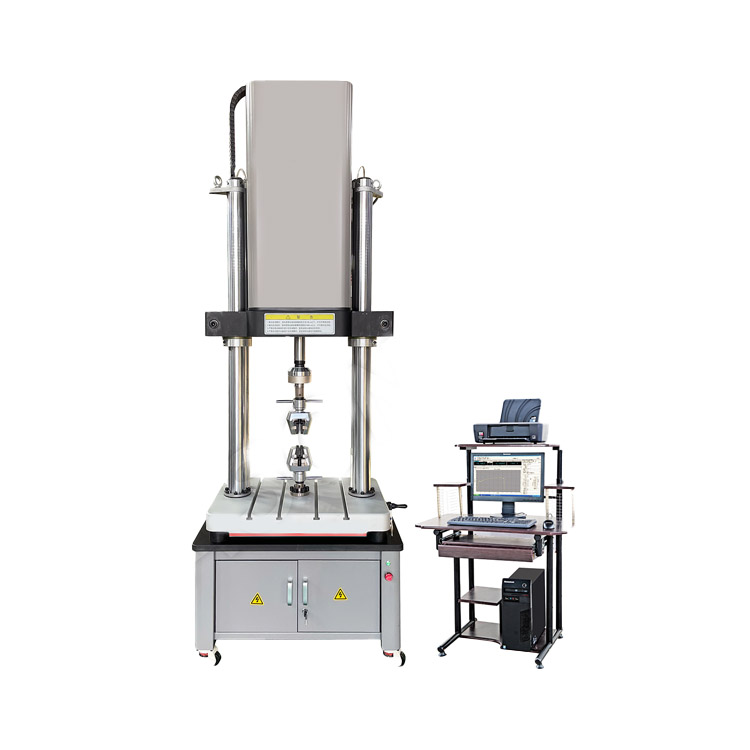

Electric dynamic compression tensile Fatigue Testing Machine

Application
It is mainly used to detect the static and dynamic mechanical properties of tiny material samples, parts and components, and elastomers. It can realize fatigue tests such as tension, compression, and bending, as well as high-cycle fatigue, low cycle fatigue, crack extension, fracture toughness and other tests, and realize various waveform outputs such as sine wave, triangle wave, and square wave. Equipped with high temperature furnace, high and low temperature box and corrosion box, it can realize mechanical testing in different environments.

Specifications

MODEL

KASON-EDT203, KASON-EDT503, KASON-EDT104, KASON-EDT204, KASON-EDT504

Maximum static force (kN)

2, 5, 10, 20, 50

Maximum dynamic force (kN)

±2, ±5, ±10, ±20, ±50

Load range

2%-100%FS

Testing machine accuracy

±0.5%

Amplitude stroke(mm)

±50

Displacement measuring range (mm)

0~100(±50)

Displacement resolution(mm)

0.001

Displacement accuracy

±0.5%

Sine wave test Frequency (Hz)

Standard: 0.01~20; Optional: 0.01~50;

Test waveform

Sine wave, triangle wave, square wave, etc

Maximum tensile space (mm)

0~570

Distance between columns (mm)

460

Machine frame sizes(mm)

778X711X1655

Power supply

AC 380V± 10%, 50Hz
